| Product Type |

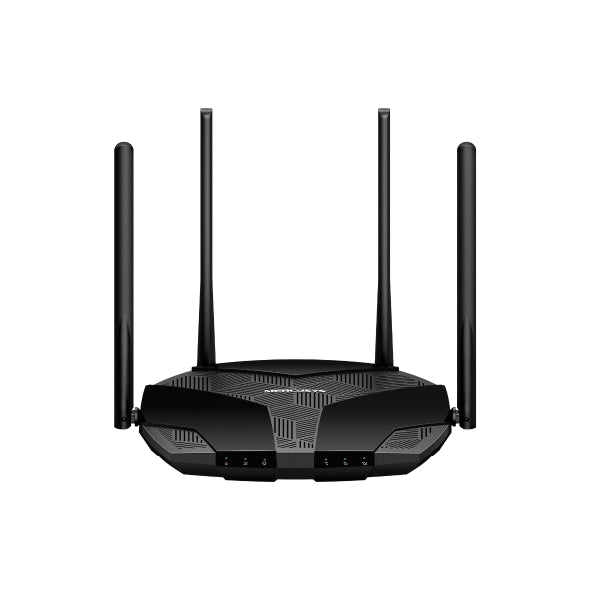

4G+ Cat6 AC1200 Dual-Band Gigabit Router |
| Model |
MB235-4G |
| Cellular Technology |
4G+ LTE Cat 6 |
| 4G Download Speed |
Up to 300 Mbps |
| 4G Upload Speed |
Up to 50 Mbps |
| SIM Card |
1 × Nano SIM Card Slot |
| Wi-Fi Standard |
IEEE 802.11ac/a/b/g/n |
| Wi-Fi Class |
AC1200 |
| 5 GHz Speed |
Up to 867 Mbps |
| 2.4 GHz Speed |
Up to 300 Mbps |
| Combined Wi-Fi Speed |
Up to 1.2 Gbps |
| Maximum Channel Width |
80 MHz |
| Connected Devices |
Up to 64 Wi-Fi devices |
| Recommended Clients |
Up to 32 devices |

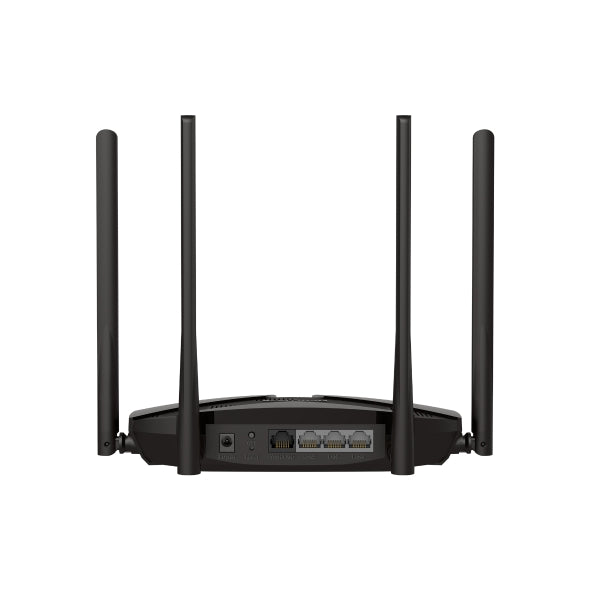

| WAN/LAN Port |
1 × Gigabit Ethernet WAN/LAN |
| LAN Ports |
3 × Gigabit Ethernet |
| LTE Antennas |
2 × External Detachable 4G LTE Antennas |
| Wi-Fi Antennas |
2 × External Wi-Fi Antennas |
| Mesh Support |
EasyMesh Compatible |
| Wireless Security |
WPA-PSK / WPA2-PSK / WPA3-SAE |
| Wireless Features |
Smart Connect, WPS, Wireless Schedule |
| Operation Modes |
3G/4G Router, Wireless Router |
| Cellular Modes |
4G / 3G |
| WAN Types |
Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| NAT Forwarding |
ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Guest Network |
2.4 GHz + 5 GHz |
| Parental Controls |
Time Control, Website Filtering |
| QoS |
Supported |
| DDNS |
MERCUSYS DDNS, DynDNS, NO-IP |
| SMS |
Inbox, New Message, Outbox, Drafts |
| Management |
MERCUSYS App, Web GUI, Remote Management, TR-069 |
| Protocols |
IPv4 / IPv6 |
| Data Management |
Data Statistics, Data Limit, Data Roaming |
| Power Supply |
12 V / 1 A |
| Dimensions |
209 × 171.9 × 41.7 mm |
| Installation |
Desktop |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10%–90% RH, Non-Condensing |
| Package Contents |
MB235-4G Router, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide |
