| Product Type |

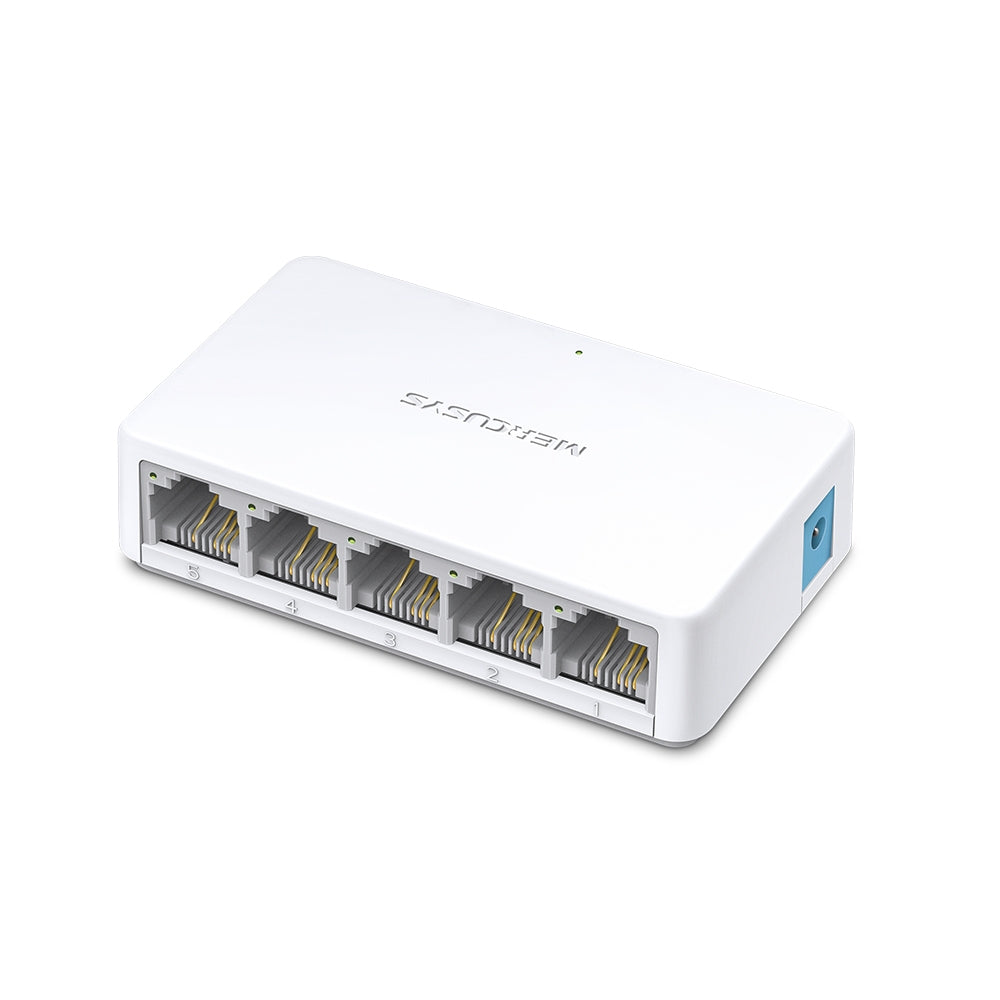

5-Port 10/100 Mbps Desktop Switch |
| Model |
MS105 |
| Ethernet Ports |
5 × 10/100 Mbps RJ45 |
| Auto-Negotiation |
Supported |
| Auto MDI/MDIX |
Supported |
| Switching Capacity |
1 Gbps |
| Switching Method |
Store-and-Forward |
| Data Rates |
10/100 Mbps Half Duplex; 20/200 Mbps Full Duplex |
| Buffer Capacity |
768 Kb |
| Jumbo Frame |
2 KB |
| Standards |
IEEE 802.3 / 802.3u / 802.3x CSMA/CD |
| MAC Address Learning |
Supported |
| Cooling |
Fanless Design |
| Management |
Unmanaged / Plug & Play |
| Configuration |
No Configuration Required |
| Installation |
Desktop |
| Housing |
Compact Plastic Casing |
| LED Indicators |
Ethernet Ports (1–5) / Power |
| Power Supply |
External Power Adapter, 5 VDC / 0.6 A |
| Dimensions |
82 × 49 × 21 mm |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10%–90% RH, Non-Condensing |
| Storage Humidity |
5%–90% RH, Non-Condensing |
| Certifications |
CE, RoHS |

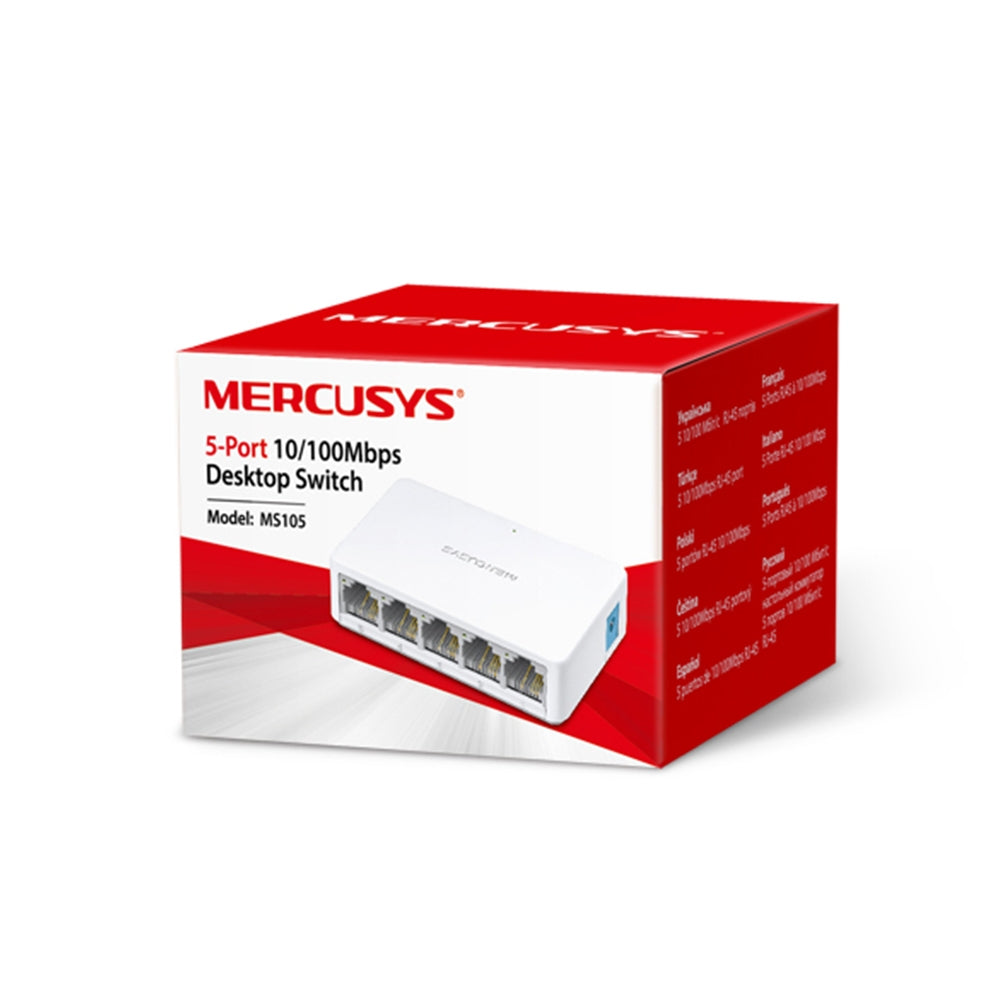

| Package Contents |
MS105, Power Adapter, Quick Installation Guide |
