| Product Type |

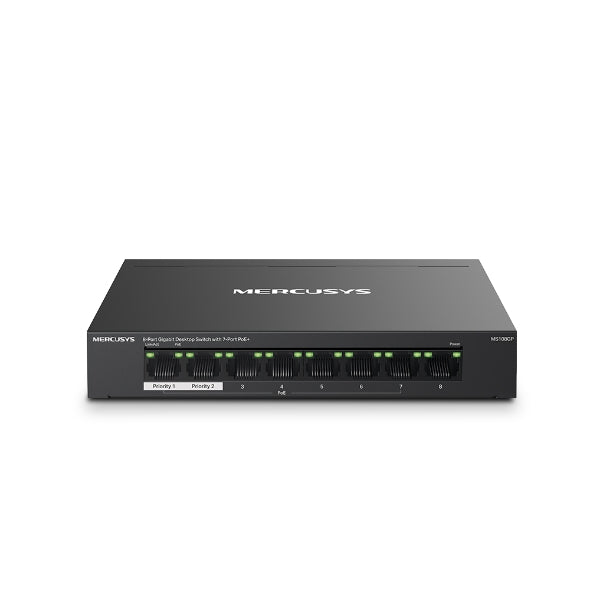

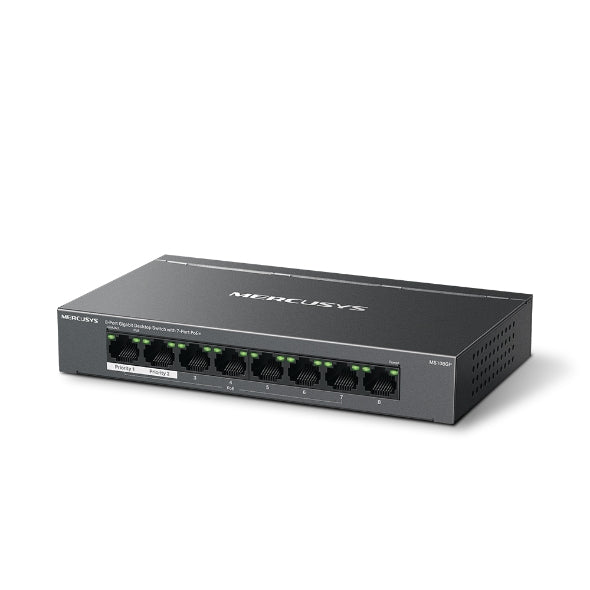

8-Port Gigabit Desktop PoE+ Switch |
| Model |
MS108GP |
| Gigabit Ports |
8 × 10/100/1000 Mbps RJ45 |
| PoE+ Ports |
7 × Gigabit PoE+ (Ports 1–7) |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| PoE Power per Port |
Up to 30 W |
| Total PoE Budget |
65 W |
| Long-Range PoE |
Up to 250 m with Extend Mode |
| Extend Mode Speed |
10 Mbps |
| Isolation Mode |
Supported |
| PoE Auto Recovery |
Not specified on the official MS108GP page |
| Switching Capacity |
16 Gbps |
| MAC Address Table |
8K |
| Jumbo Frame |
9 KB |
| Switching Method |
Store-and-Forward |
| Flow Control |
IEEE 802.3x |
| Auto-Negotiation |
10/100/1000 Mbps |
| Auto MDI/MDIX |
Supported |
| Housing |
Durable Metal Casing |
| Cooling |
Silent / Fanless Operation |
| Mounting |
Desktop / Wall Mount |
| Management |
Unmanaged / Plug & Play |
| Power Supply |
External Power Adapter, 53.5 V / 1.31 A |
| Max Power Consumption |
5.07 W without PDs / 77.33 W with 65 W PoE load |
| Dimensions |
171 × 98 × 27 mm |
| Operating Temperature |
-10°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10%–90% RH, Non-Condensing |
| Storage Humidity |
5%–95% RH, Non-Condensing |
| Certifications |
CE, RoHS |
| Package Contents |
MS108GP, Power Adapter, Quick Installation Guide |
