| Product Type |

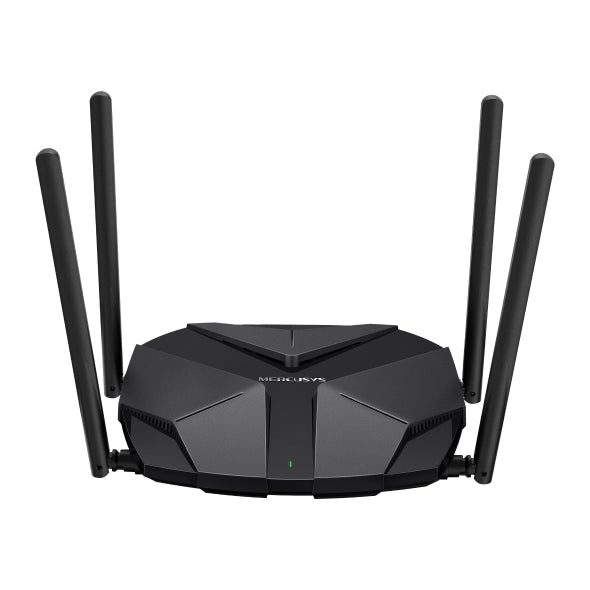

AX3000 Dual-Band Wi-Fi 6 Router |
| Model |
MR85X |
| Wi-Fi Standard |
IEEE 802.11ax/ac/a/b/g/n |
| Wi-Fi Class |
AX3000 |
| 5 GHz Speed |
Up to 2402 Mbps |
| 2.4 GHz Speed |
Up to 574 Mbps |
| Combined Speed |

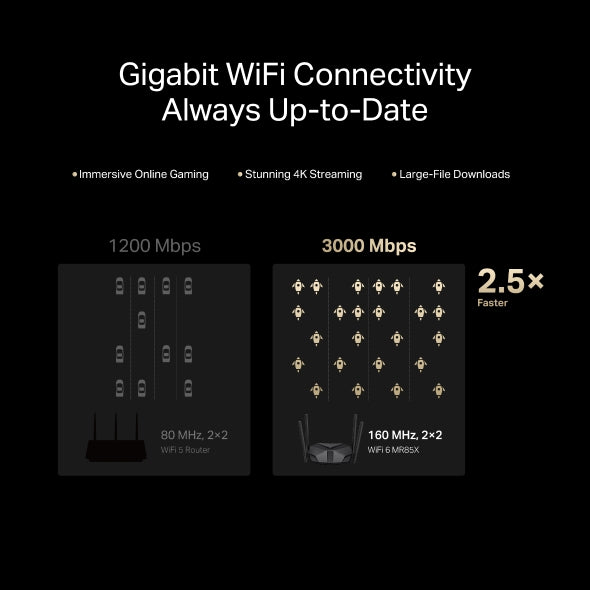

Up to 2976 Mbps |
| Channel Width |
Up to 160 MHz |
| Wi-Fi Features |

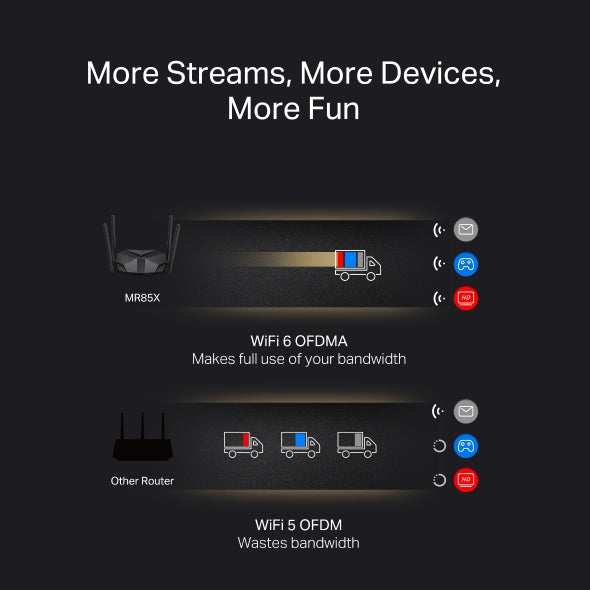

OFDMA, MU-MIMO, 1024-QAM, BSS Coloring, Beamforming, TWT |
| Smart Connect |
Automatically selects the optimal Wi-Fi band |
| Antennas |
4 × Fixed Omnidirectional High-Gain Antennas |
| Antenna Gain |
Up to 5 dBi |

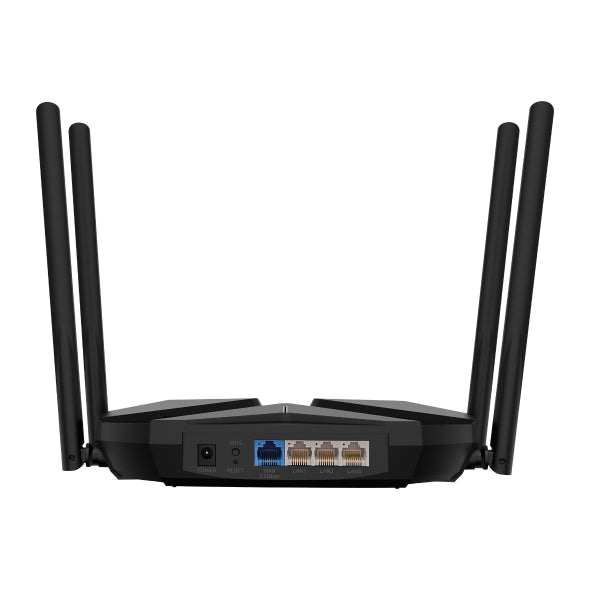

| WAN Port |
1 × 2.5 Gbps |
| LAN Ports |
3 × Gigabit Ethernet |

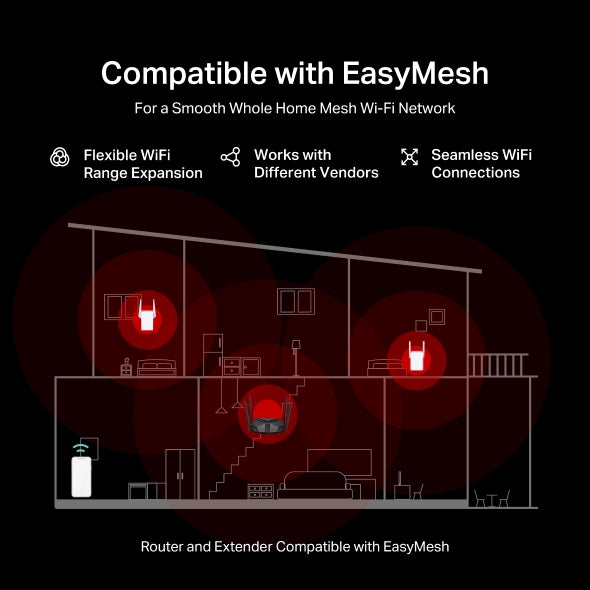

| Mesh Support |
EasyMesh Compatible |
| Wireless Security |
WPA/WPA2/WPA3 |
| Guest Network |
2.4 GHz + 5 GHz |
| VPN Server |
OpenVPN, PPTP, L2TP/IPSec, WireGuard |
| VPN Client |
OpenVPN, PPTP, L2TP/IPSec, WireGuard |
| VPN Kill Switch |
Supported |
| Operation Modes |
Router / Access Point |
| WAN Types |
Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| NAT Forwarding |
Port Forwarding, Port Triggering, UPnP, DMZ |
| Parental Controls |
Profiles, Time Control, Internet Pause, Website Filtering |
| QoS |
Priority Control / Time Settings |
| Firewall |
SPI Firewall, Access Control, IP & MAC Binding |
| DDNS |
MERCUSYS, NO-IP, DynDNS |
| Management |
MERCUSYS App, Web Management, MERCUSYS ID |
| IPTV |
IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| Dimensions |
209 × 171.7 × 42.4 mm |
| Installation |
Desktop / Wall-Mount |
| Power Supply |
100–240 V AC, 50/60 Hz; 12 V / 1.5 A |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10%–90% RH, Non-Condensing |
| Package Contents |
MR85X Router, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide |
