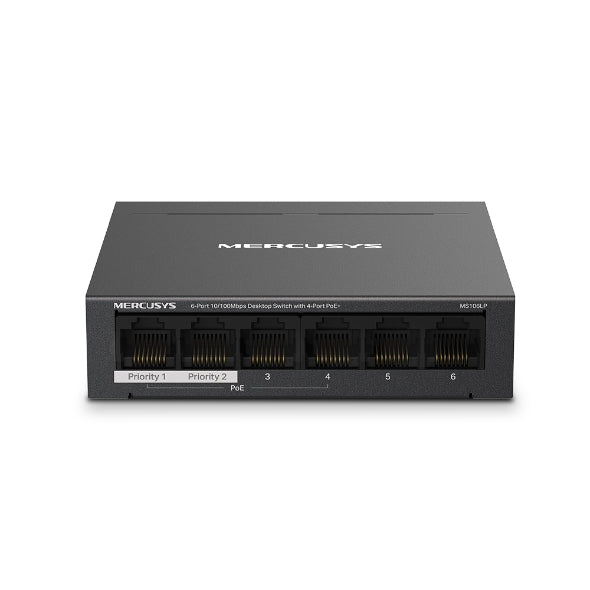

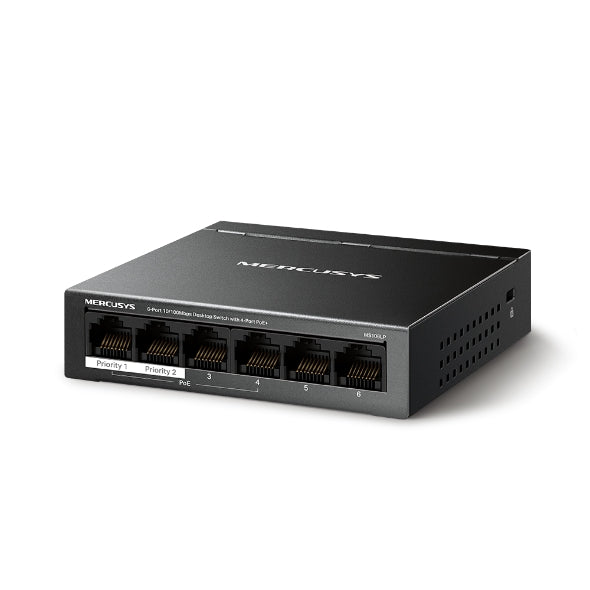

| Product Type |
6-Port 10/100 Mbps Desktop PoE+ Switch |
| Model |
MS106LP |
| Total Ports |
6 × 10/100 Mbps RJ45 |
| PoE+ Ports |
4 × 10/100 Mbps RJ45 (Ports 1–4) |
| Uplink Ports |
2 × 10/100 Mbps RJ45 |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| PoE Power per Port |
Up to 30 W |
| Total PoE Budget |
40 W |
| Long-Range PoE |
Up to 250 m with Extend Mode |
| Extend Mode Speed |
10 Mbps |
| Isolation Mode |
Supported |
| Uplink Function in Isolation Mode |
2 dedicated uplinks; one for Internet and one for NVR |
| PoE Auto Recovery |
Supported |
| Switching Capacity |
1.2 Gbps |
| MAC Address Table |
2K |
| Switching Method |
Store-and-Forward |
| Flow Control |
IEEE 802.3x |
| Auto-Negotiation |
Supported |
| Auto MDI/MDIX |
Supported |
| Housing |
Durable Metal Casing |
| Cooling |
Silent / Fanless Operation |
| Mounting |
Desktop / Wall Mount |
| Management |
Unmanaged / Plug & Play |
| Power Supply |
External Power Adapter, 53.5 VDC / 0.81 A |
| Input Power |
100–240 V AC, 50/60 Hz |
| Dimensions |
99.8 × 98 × 25 mm |
| Network Media |
10BASE-T / 100BASE-TX |
| Certifications |
CE, RoHS |
| Application |
IP Cameras, Access Points, IP Phones, NVRs and Small Business Networks |
