| Product Type |
Dual-Band Wi-Fi 6 Router |
| Wi-Fi Standard |
Wi-Fi 6 – IEEE 802.11ax/ac/n/a (5 GHz), 802.11ax/n/b/g (2.4 GHz) |
| Wi-Fi Class |
AX1500 |
| Total Wi-Fi Speed |
Up to 1,501 Mbps
|
| 5 GHz Speed |
Up to 1,201 Mbps
|
| 2.4 GHz Speed |
Up to 300 Mbps
|
| Wireless Technology |
OFDMA, MU-MIMO, 1024-QAM, Beamforming, BSS Coloring |
| Processor |
Dual-Core CPU |
| Antennas |
4× High-performance external antennas |

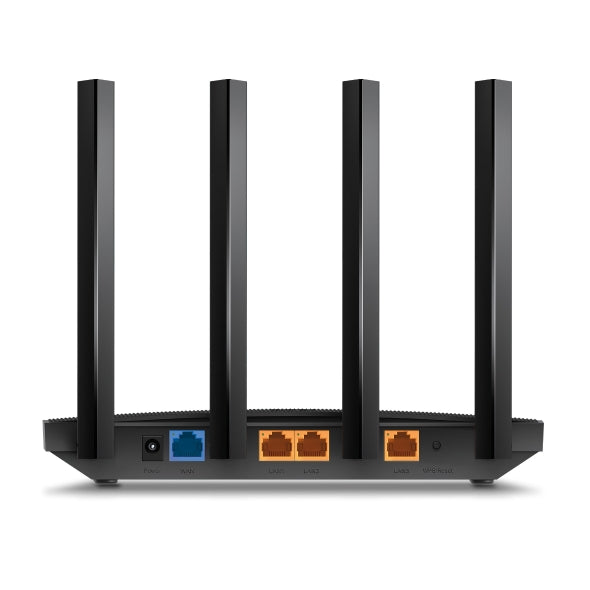

| Ethernet Ports |
1× Gigabit WAN + 3× Gigabit LAN |
| WAN Type |
Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Security |
WPA/WPA2/WPA3, SPI Firewall, Access Control |
| HomeShield |
Network security and parental control features |
| Parental Controls |
User profiles, content filtering, time limits and activity monitoring |
| QoS |
Device-based Quality of Service |
| VPN |
VPN Server/Client support |
| IPv6 |
Supported |
| Mesh Support |
Compatible with TP-Link EasyMesh |
| Smart Connect |
Automatically assigns devices to the optimal wireless band |
| Guest Network |
Separate 2.4 GHz and 5 GHz guest networks |
| Management |
TP-Link Tether App / Web Interface |
| Voice Assistant |
Compatible with Amazon Alexa |
| Operating Modes |
Router Mode / Access Point Mode |
| USB Port |
Not available |
| Dimensions |
230 × 144 × 37 mm |
| Package |
1× Archer AX12, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide |
