Eaton

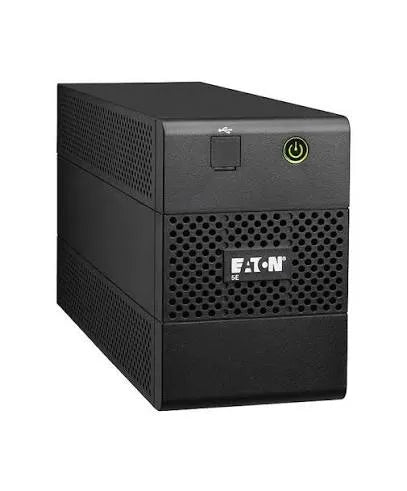

Eaton 5E Series 850VA

Eaton 5E Series 850VA

LE 4,000.00 EGP
LE 4,000.00 EGP
Sale Sold out
Shipping calculated at checkout.

Eaton 5E Series 850VA – Key Features & Specifications

Feature Specification
Product Type Line-Interactive UPS
Series Eaton 5E
Model 5E850iUSB
Capacity 850 VA / 480 W
Technology Line-Interactive with AVR
Form Factor Tower / Free-Standing
Input Voltage 220 / 230 / 240 V
Input Voltage Range 170–280 V
Input Connection 1 × IEC C14
Output Voltage 230 V
Output Frequency 50/60 Hz Auto-Select
Output Waveform Modified / Step Sine Wave
Output Connections 4 × IEC C13
AVR Automatic Voltage Regulation – Booster & Fader
Battery Type Sealed Lead-Acid
Internal Battery 1 × 12 V / 9 Ah
Battery Management Automatic Battery Test, Deep-Discharge Protection & Cold Start
USB Communication 1 × USB HID
Software Eaton UPS Companion
Auto Shutdown Supported
Extended Battery Not Supported
Transfer Time 2–6 ms typical, 10 ms maximum
Backup Time at 100W Load Approx. 20 minutes
Full-Load Runtime Approx. 30 seconds
Noise Level <40 dB at 1 m
Operating Temperature 0°C to 40°C
Operating Humidity 0–90% RH, Non-Condensing
Maximum Altitude 2,000 m
Dimensions (H × W × D) 148 × 100 × 288 mm
Weight Approx. 5.16 kg
Rack Mounting Not Supported
Certifications IEC/EN 62040-1, IEC/EN 62040-2, CE, CB
