Eaton

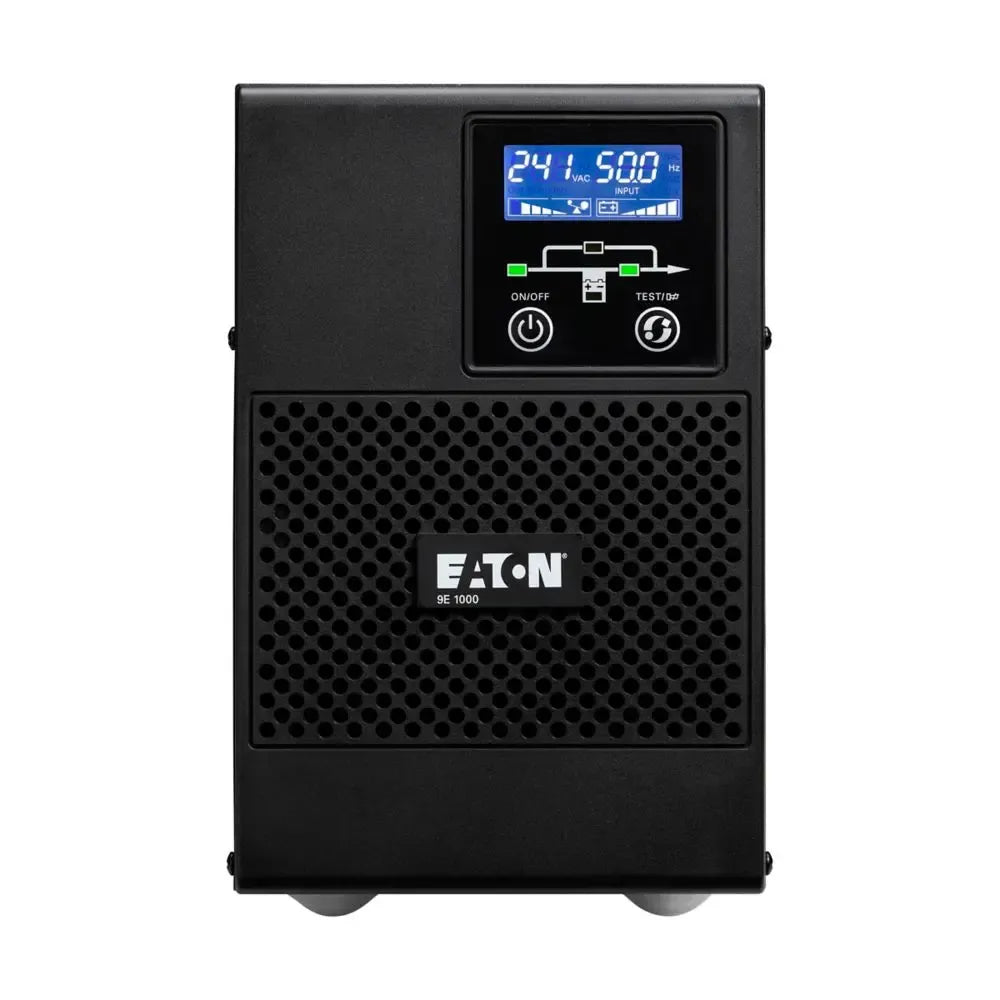

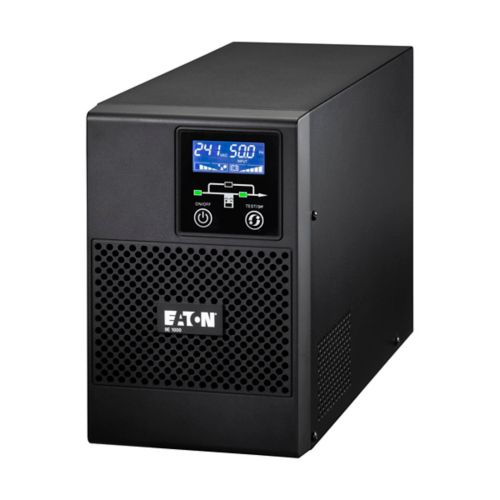

Eaton 9E Series 1000VA

Eaton 9E Series 1000VA

LE 19,000.00 EGP
LE 19,000.00 EGP
Sale Sold out
Shipping calculated at checkout.

Eaton 9E 1000VA – Key Features & Specifications

Feature Specification
Product Type Online Double-Conversion UPS
Series Eaton 9E
Model 9E1000I
Capacity 1000 VA / 800 W
Technology Online Double Conversion
Form Factor Tower / Free-Standing
Input Voltage 220 / 230 / 240 V
Input Voltage Range 176–300 V; 100–300 V with derating
Input Frequency 40–70 Hz
Input Power Factor >0.99
Input Connection 1 × IEC C14
Output Voltage 220 / 230 / 240 V ±2%
Output Frequency 50/60 Hz
Output Waveform Pure Sine Wave
Output Power Factor 0.8

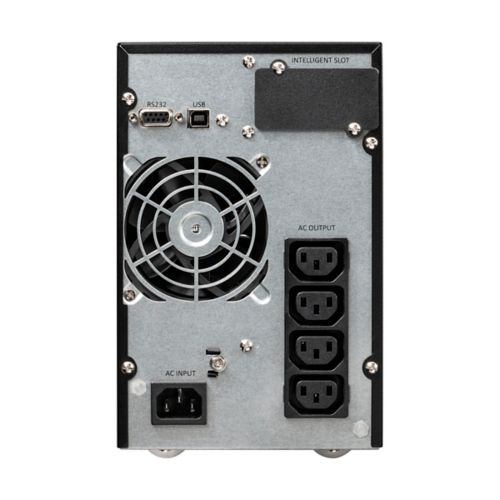

Output Connections 4 × IEC C13
Internal Bypass Supported
Efficiency Up to 94%
ECO Mode Efficiency Up to 97%
Battery Type Sealed Lead-Acid
Internal Batteries 2 × 12 V / 9 Ah
Battery Management Automatic Battery Test & Deep-Discharge Protection
Battery Replacement Replaceable
Extended Runtime Supported with External Battery Module
Runtime at 50% Load Approx. 11.5 minutes
Runtime at 100% Load Approx. 5 minutes

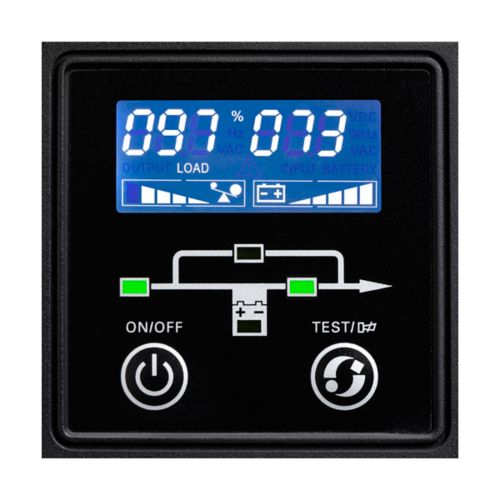

Display LCD Display
Communication USB HID + RS232
Communication Slot 1 × Slot for Optional Communication Card
Network Card Optional
Software Eaton Intelligent Power Manager / Protector
Auto Shutdown Supported
Noise Level <37 dB at 1 m
Operating Temperature 0°C to 40°C
Operating Humidity 0–95% RH, Non-Condensing
Altitude Up to 3000 m
Dimensions 356 × 144 × 228 mm
Weight Approx. 9.5 kg
Rack Mounting Not Supported
Certifications IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC
