| Product Type |
Online Double-Conversion UPS |
| Series |

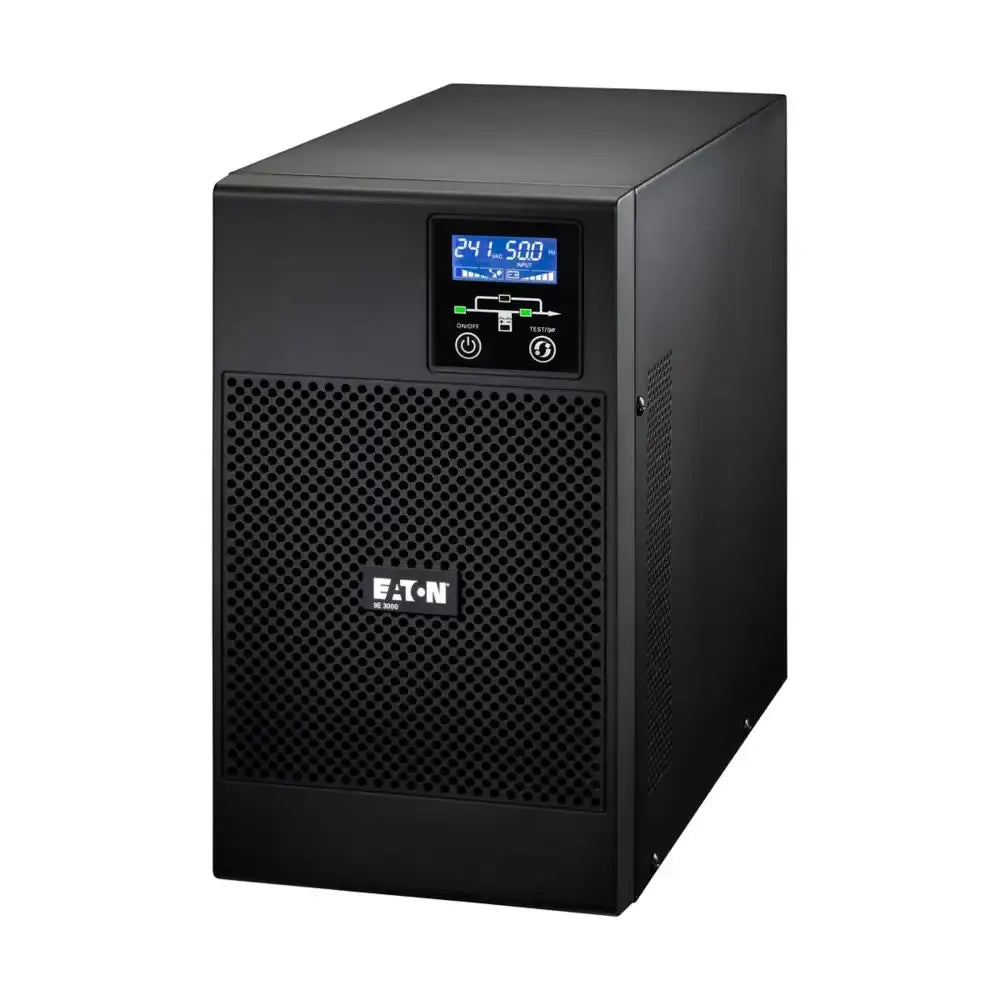

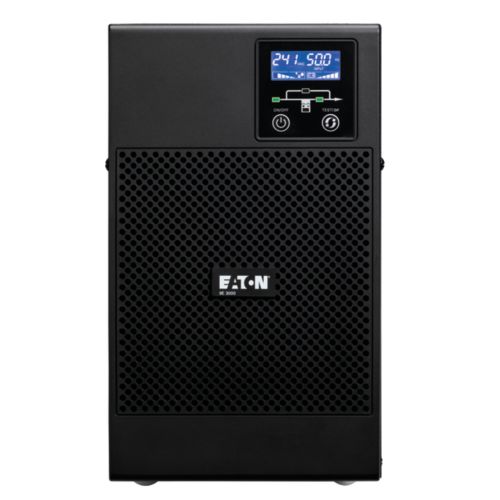

Eaton 9E |
| Model |
9E3000I |
| Capacity |
3000 VA / 2400 W |
| Technology |
Online Double Conversion |
| Input Voltage |
220 / 230 / 240 V |
| Input Voltage Range |
100–300 V with derating |
| Input Frequency |
40–70 Hz |
| Output Voltage |
220 / 230 / 240 V ±2% |
| Output Frequency |
50/60 Hz |
| Output Waveform |
Pure Sine Wave |
| Output Power Factor |
0.8 |
| Input Power Factor |
>0.99 |
| Input Connection |
1 × IEC C20 |

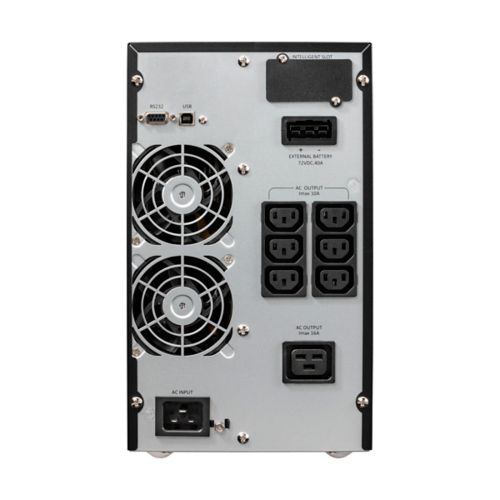

| Output Connections |
6 × IEC C13 + 1 × IEC C19 |
| Internal Bypass |
Supported |
| Efficiency – Online Mode |
Up to 91% |
| Efficiency – ECO Mode |
Up to 97.5% |
| Battery Type |
Sealed Lead-Acid |
| Internal Batteries |
6 × 12 V / 9 Ah |
| Battery Management |
Automatic Battery Test & Deep-Discharge Protection |
| Battery Replacement |
Replaceable Batteries |
| Extended Runtime |
Supported with up to 4 × External Battery Modules (EBM) |
| Backup Time at 50% Load |
Approx. 13.5 minutes |
| Backup Time at 100% Load |
Approx. 5 minutes |

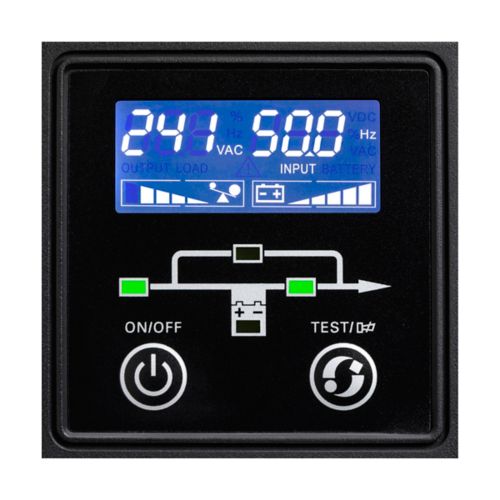

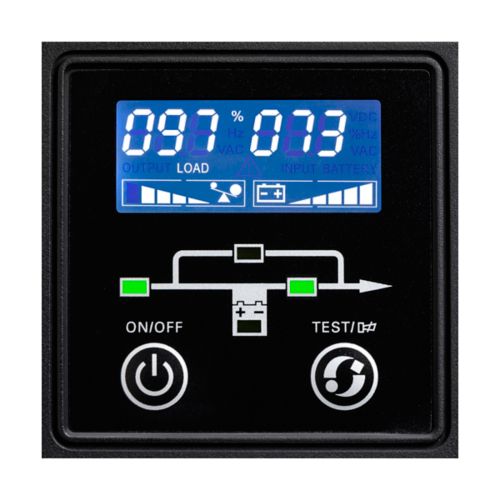

| Display |
LCD Display |
| Communication Ports |
USB + RS232 Serial |

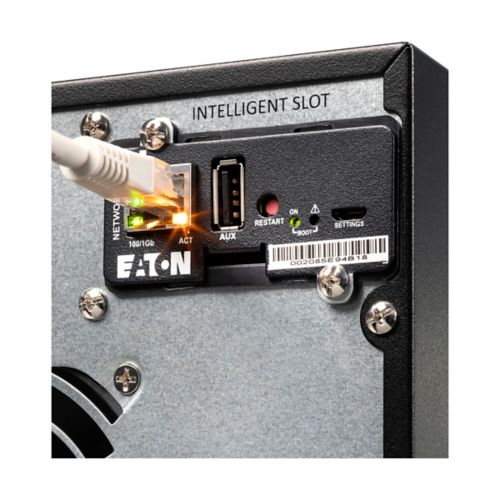

| Communication Slot |
1 × Slot for Optional Network/Management Card |
| Network Card |
Optional |
| Software Compatibility |
Eaton Intelligent Power Manager / Protector |
| Auto Shutdown |
Supported |
| Cooling |
Internal Fan Cooling |
| Noise Level |
<37 dB at 1 m |
| Installation |
Tower / Freestanding |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
0–95% RH, Non-Condensing |
| Dimensions |
399 × 330 × 190 mm |
| Weight |
Approx. 24.2 kg |
| Certifications |
IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC |
| Application |
Servers, Network Equipment, Data Centers, Telecom & Critical IT Infrastructure |
