Grandstream

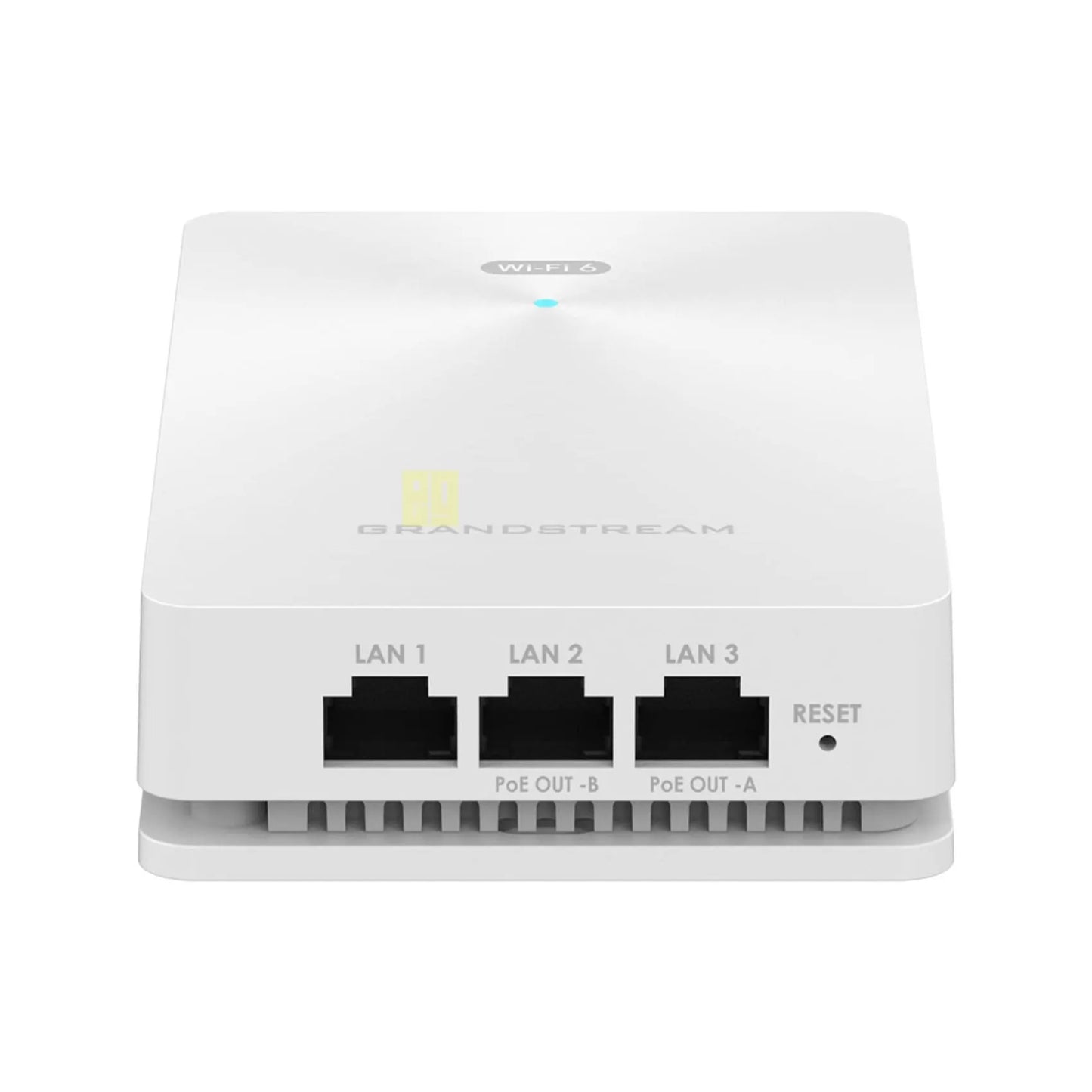

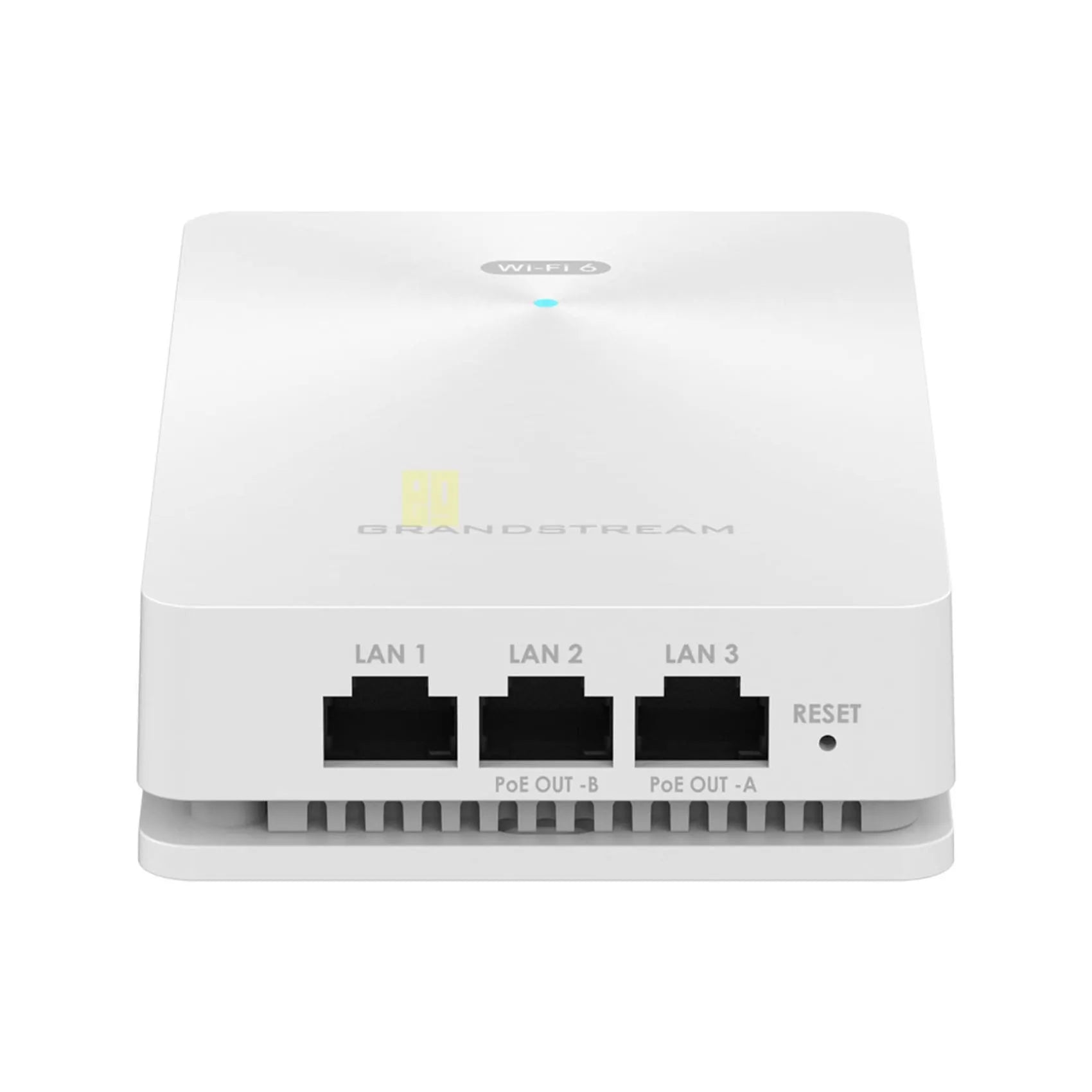

Grandstream-GWN7661

Grandstream-GWN7661

LE 5,890.00 EGP
LE 5,890.00 EGP
Sale Sold out
Shipping calculated at checkout.

Grandstream GWN7661 In-Wall Wi-Fi 6 Access Point – Key Features & Specifications

Feature Specification
Product Model Grandstream GWN7661
Product Type In-Wall Wi-Fi 6 Access Point
Wi-Fi Standard IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)
Wireless Throughput Up to 1.77 Gbps aggregate
2.4 GHz Up to 573.5 Mbps, 2×2:2 MU-MIMO
5 GHz Up to 1.201 Gbps, 2×2:2 MU-MIMO
MIMO Technology Dual-band 2×2:2 MU-MIMO with DL/UL OFDMA
Coverage Range Up to 100 meters*
Concurrent Clients Up to 500+ Wi-Fi client devices
Uplink Port 1 × Gigabit Ethernet with PoE/PoE+
Downlink Ports 2 × Gigabit Ethernet ports with PoE PSE
Additional Ethernet 1 × Gigabit Ethernet port
PoE Output Up to 6W per PSE port
Power Input IEEE 802.3af/802.3at PoE/PoE+
Antennas 4 × internal single-band antennas
Channel Bandwidth Up to 40 MHz on 2.4 GHz and 80/160 MHz on 5 GHz
SSIDs Up to 32 total; 16 per radio
Security WPA/WPA2-PSK, WPA/WPA2 Enterprise, secure boot, digital signatures and unique security certificate
QoS 802.11e/WMM, VLAN and TOS
Network Features VLAN, Mesh Networking, Captive Portal and Client Management
Management Embedded Controller, GDMS Networking and GWN Manager
Embedded Controller Manages up to 50 local GWN Access Points
Cloud Management GDMS Networking for centralized cloud management
Installation In-wall mounting
Dimensions 135 × 86 × 38.5 mm
Operating Temperature -10°C to 50°C
Applications Hotels, offices, residential units, commercial locations and Voice-over-Wi-Fi deployments
Key Benefit In-wall Wi-Fi 6 connectivity with 1.77 Gbps wireless throughput, 500+ client capacity and multiple Gigabit Ethernet ports for connecting wired devices
