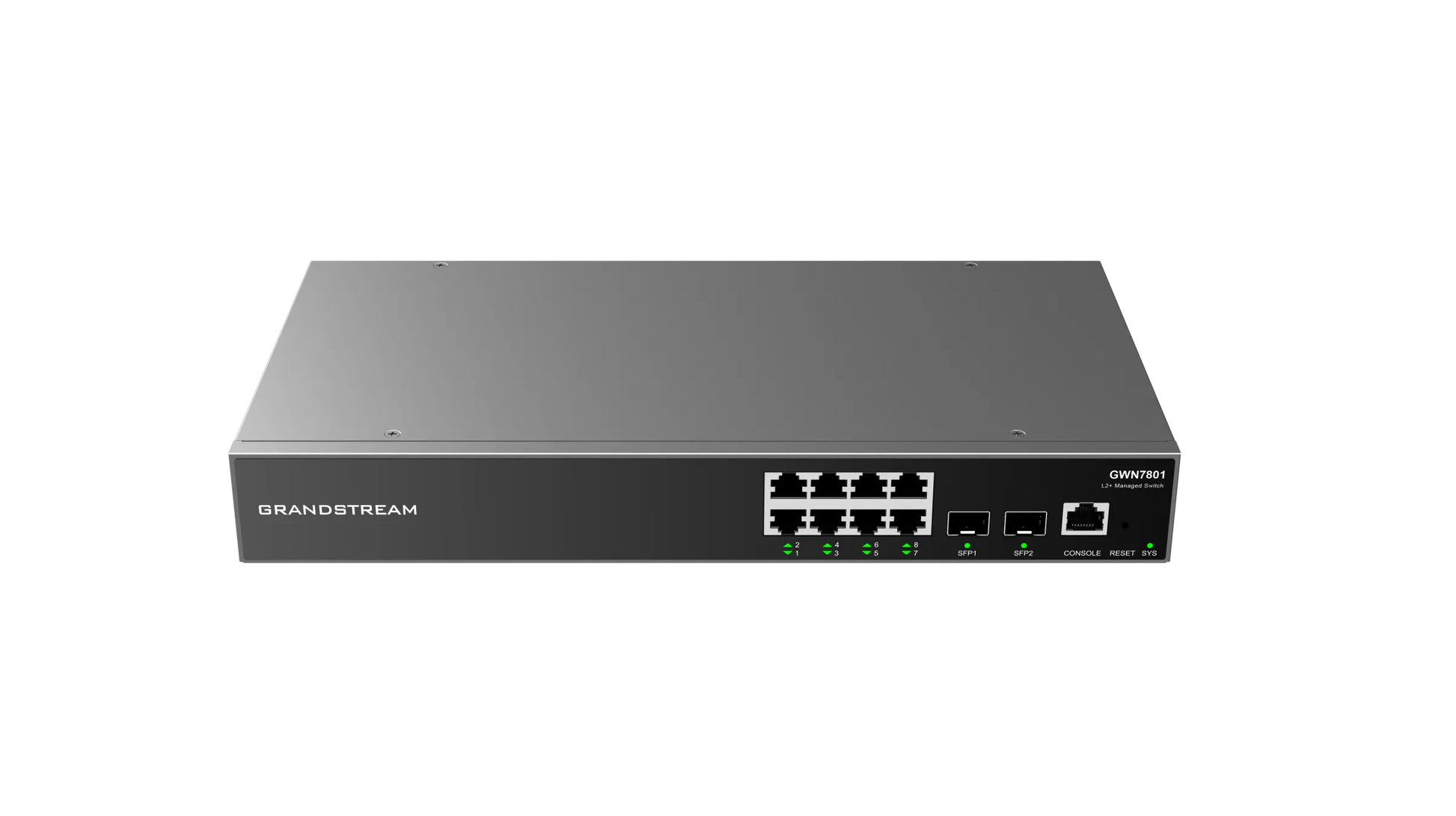

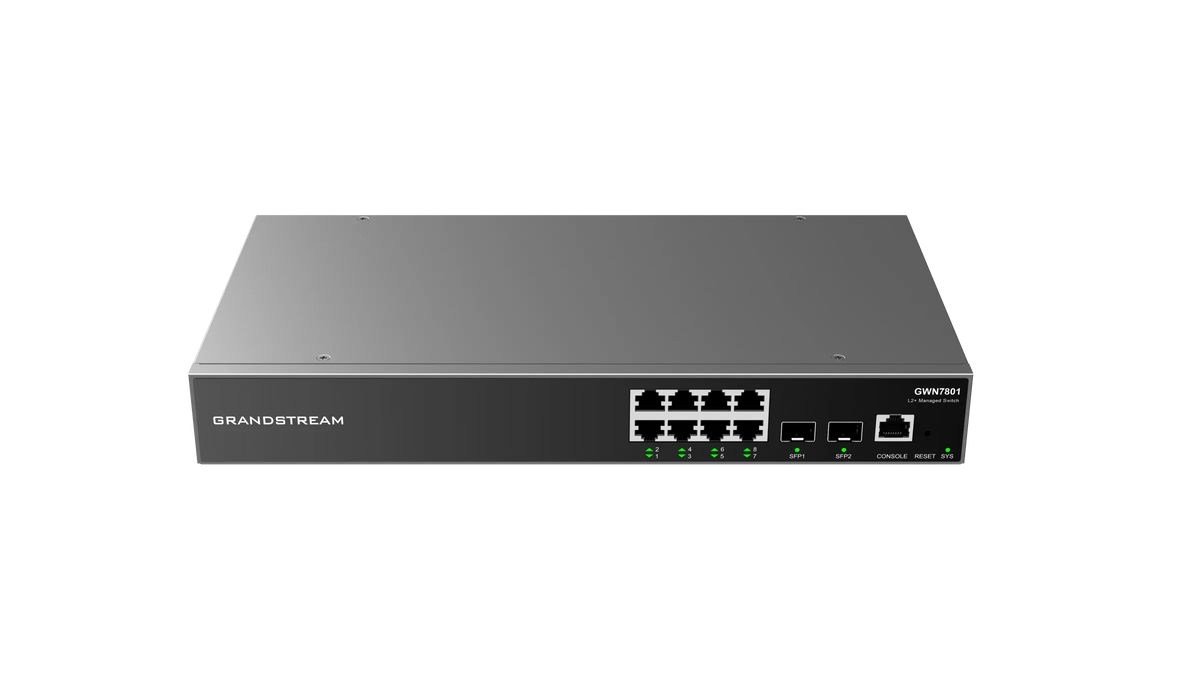

Grandstream GWN7801 – Key Features & Specifications
| Feature | Specification |
|---|---|
| Product Model | Grandstream GWN7801 |
| Product Type | Layer 2+ Managed Network Switch |
| Gigabit Ethernet Ports | 8 × Gigabit Ethernet (10/100/1000 Mbps) |
| SFP Ports | 2 × Gigabit SFP |
| PoE | Not Supported |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Non-Blocking Throughput | 10 Gbps |
| MAC Address Table | Up to 8,000 MAC addresses |
| VLAN | Up to 4,000 VLANs; Port-based VLAN, 802.1Q VLAN tagging, MAC-based VLAN, Protocol-based VLAN, QinQ and Voice VLAN |
| VLAN Interface | Up to 16 VLAN Virtual Interfaces |
| Link Aggregation | Up to 8 Link Aggregation Groups |
| Spanning Tree | STP / RSTP / MSTP / PVST(+) / RPVST(+) |
| Multicast | IGMP Snooping and MLD Snooping |
| QoS | Traffic prioritization, priority mapping, queue scheduling, traffic shaping and rate limiting |
| ACL | Up to 1,500 ACL entries for Ethernet, IPv4 and IPv6 |
| Layer 3 Features | VLAN Virtual Interface and static routing |
| Security | 802.1X, MAC authentication, RADIUS/TACACS+, ARP Inspection, IP/IPv6 Source Guard, DoS Protection, Port Security and DHCP Snooping |
| Management | Web GUI, CLI, SNMP, RMON, LLDP/LLDP-MED, Syslog and network diagnostics |
| Centralized Management | GDMS Networking and GWN Manager |
| Console Port | 1 × Console port |
| Power Supply | Integrated 30W power supply |
| Forwarding Mode | Store-and-forward |
| Jumbo Frame | Up to 10,240 bytes |
| Installation | Desktop / Rack mounting |
| Operating Temperature | 0°C to 45°C |
| Applications | SMBs, offices, enterprise networks and professional IT infrastructure |
| Key Benefit | Compact Layer 2+ managed switching with 8 Gigabit ports, 2 Gigabit SFP uplinks, advanced VLAN, QoS and security features |
