| Product Model |

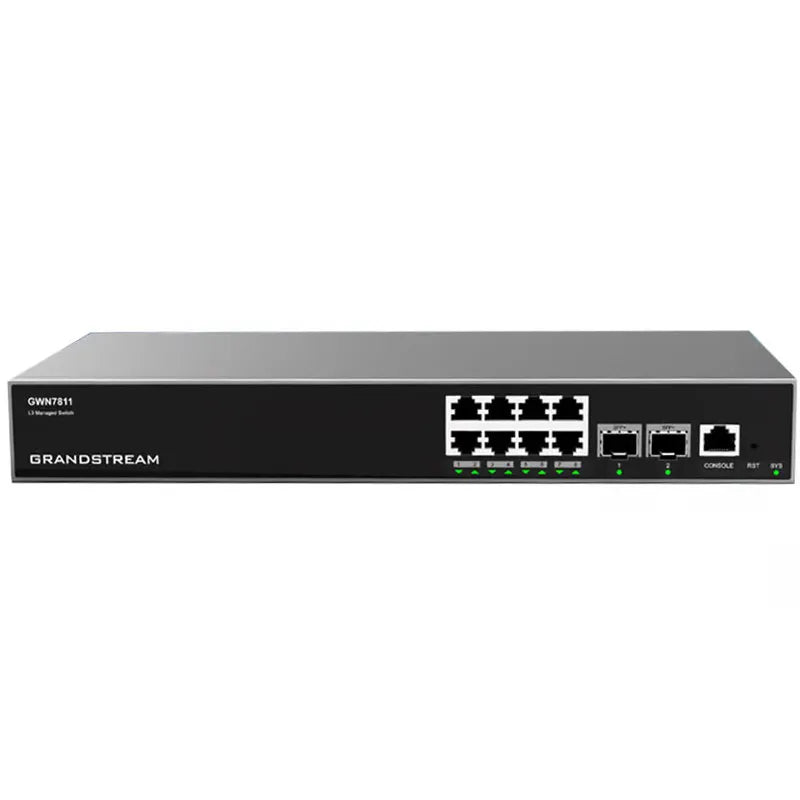

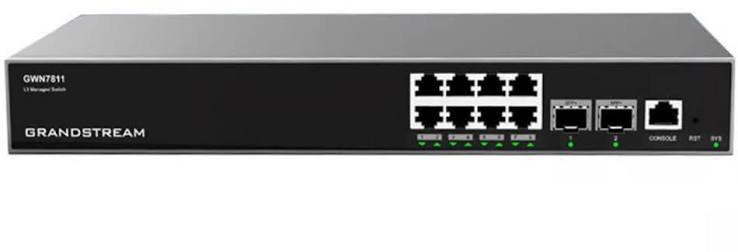

Grandstream GWN7811 |
| Product Type |
Layer 3 Managed Network Switch |
| Gigabit Ethernet Ports |
8 × Gigabit Ethernet (10/100/1000 Mbps) |
| SFP+ Ports |
2 × 10 Gigabit SFP+ |
| PoE |
Not Supported |
| Switching Capacity |
56 Gbps |
| Forwarding Rate |
41.644 Mpps |
| Total Non-Blocking Throughput |
28 Gbps |
| MAC Address Table |
Up to 16K MAC addresses |
| VLAN |
Up to 4,000 VLANs; 802.1Q, MAC-based, Protocol-based, QinQ, Private VLAN and Voice VLAN |
| Layer 3 Routing |
Static routing and dynamic routing including RIP/RIPng, OSPF/OSPFv3 and BGP |
| Multicast |
IGMP Snooping and MLD Snooping |
| Link Aggregation |
Up to 8 Link Aggregation Groups |
| Spanning Tree |
STP/RSTP/MSTP/PVST(+)/RPVST(+) |
| QoS |
Traffic prioritization, priority mapping, queue scheduling, traffic shaping and rate limiting |
| ACL |
Up to 2,000 ACL entries for Ethernet, IPv4 and IPv6 |
| Security |
802.1X, RADIUS/TACACS+, ARP Inspection, IP Source Guard, DoS Protection, Port Security and DHCP Snooping |
| Management |
Web GUI, CLI, SNMP, RMON, LLDP/LLDP-MED, Syslog and network diagnostics |
| Centralized Management |
GWN.Cloud and GWN Manager |
| Embedded Controller |
Supports centralized management of Grandstream networking devices |
| Stacking |
Supports stacking for centralized management and redundancy |
| Console Port |
1 × Console port |
| Power Supply |
AC 100–240V, 50/60Hz |
| Mounting |
Rack-mountable |
| Applications |
Enterprise networks, medium/large businesses, offices and professional IT infrastructure |
| Key Benefit |
High-performance Layer 3 switching with 10G SFP+ uplinks, advanced routing, VLAN, QoS and comprehensive security features |
