| Product Model |

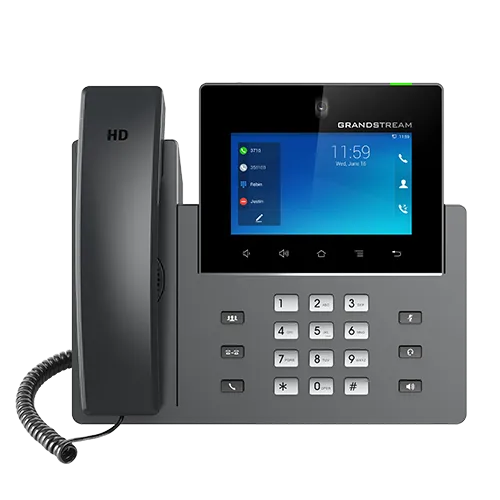

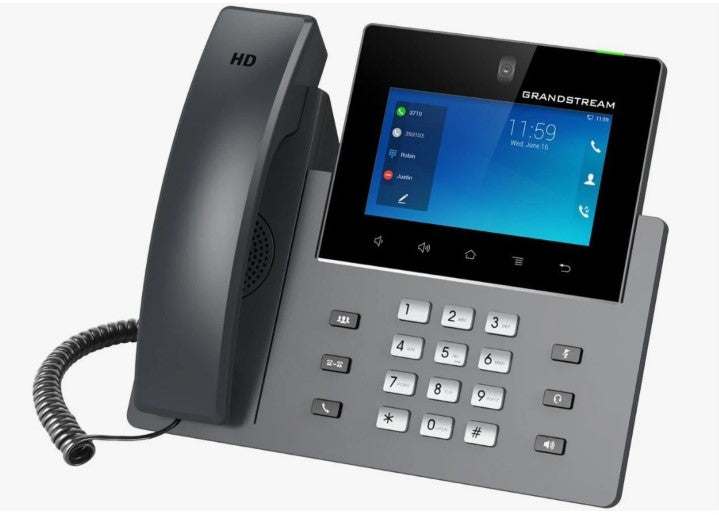

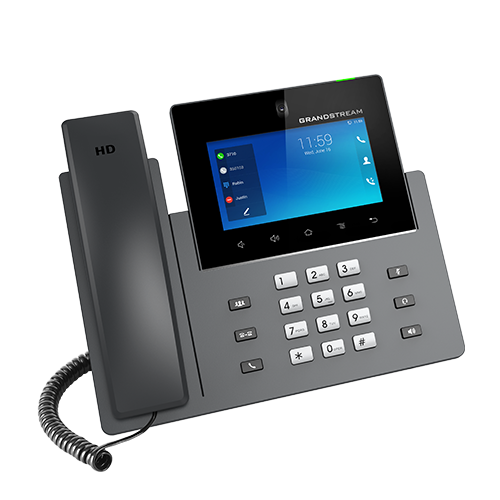

Grandstream GXV3450 |
| Product Type |
High-End Smart IP Video Phone for Android |
| Lines / SIP Accounts |
16 lines / up to 16 SIP accounts |
| Operating System |
Android 14 |
| Display |
5-inch, 1280 × 720 capacitive 5-point touch IPS LCD |
| Camera |
2 MP tiltable CMOS camera with privacy shutter |
| Video Resolution |
Up to 1080p at 30 fps |
| Video Conferencing |
Up to 3-way 720p HD video conferencing |
| Audio Conferencing |
Up to 10-way HD audio conferencing |
| Audio |
Dual-microphone HD speakerphone with Noise Shield 2.0 and advanced echo cancellation |
| Processor |
Quad-core 1.8 GHz ARM Cortex-A55 |
| Memory |
2 GB RAM + 16 GB eMMC Flash |
| Wi-Fi |
Dual-band Wi-Fi 5, 2.4 GHz & 5 GHz, 802.11a/b/g/n/ac |
| Bluetooth |
Integrated Bluetooth 5.0 |
| Network Ports |
2 × 10/100/1000 Mbps Gigabit Ethernet |
| PoE |
Integrated IEEE 802.3af PoE / 802.3at PoE+ |
| USB |
1 × USB 2.0 + 1 × USB 3.0 |
| Headset Interface |
RJ9 headset port with EHS support |
| Voice Codecs |
Opus, G.722, G.711μ/a, G.729A/B, G.726-32, iLBC |
| Security |
TLS, SRTP, HTTPS, 802.1X and encrypted configuration |
| Provisioning |
TFTP, HTTP/HTTPS, TR-069 and encrypted XML configuration |
| Phonebook |
Up to 1,000 contacts |
| Call History |
Up to 1,000 call records |
| QoS |
802.1Q, 802.1p, ToS, DiffServ and MPLS |
| Extension Module |
Supports up to 4 × GBX20 Extension Modules |
| Operating Temperature |
0°C to 40°C |
| Key Benefit |
All-in-one smart video phone combining 16 SIP lines, 5-inch touchscreen, HD video conferencing, Android 14, Wi-Fi 5, Bluetooth 5.0 and dual Gigabit PoE/PoE+ connectivity |
