Grandstream

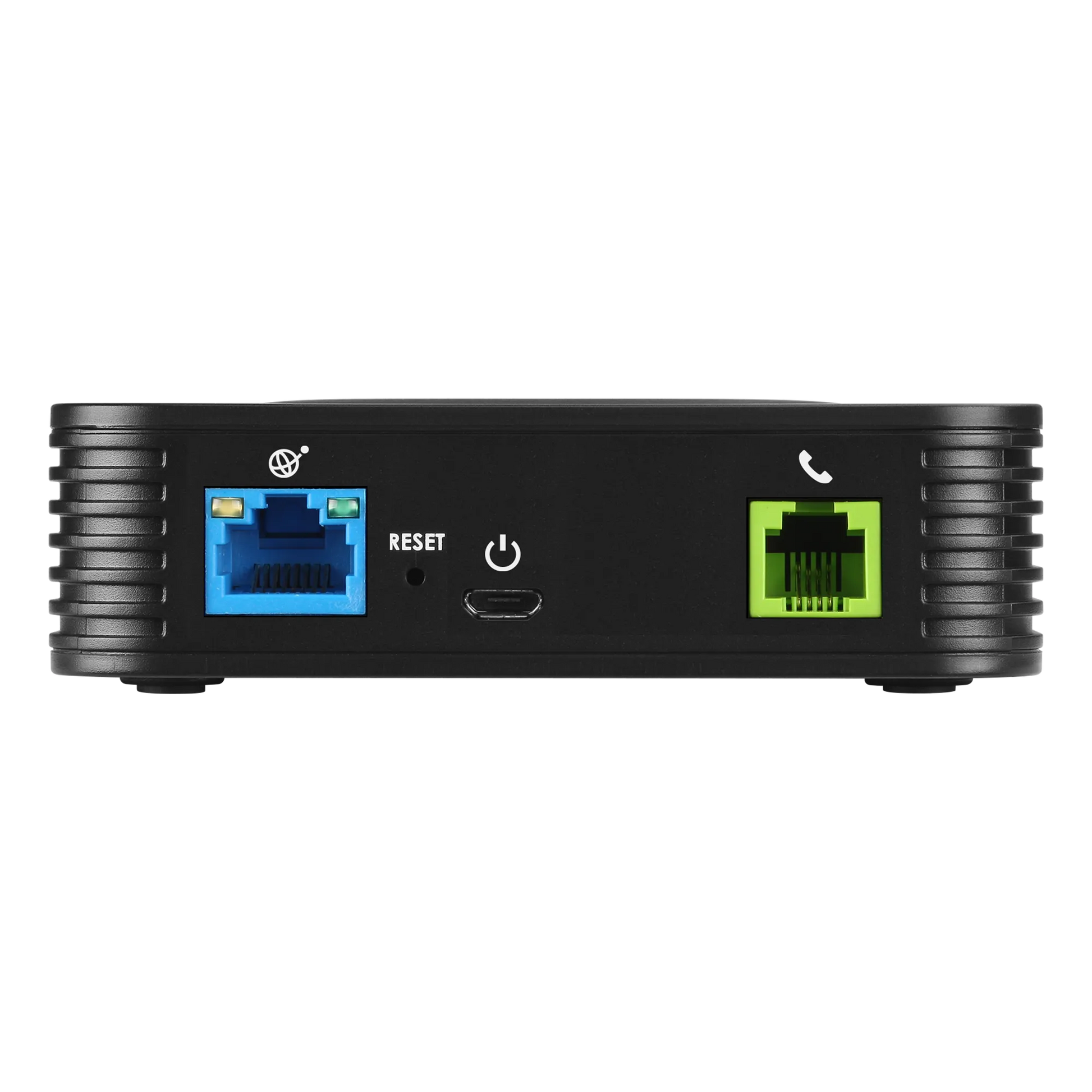

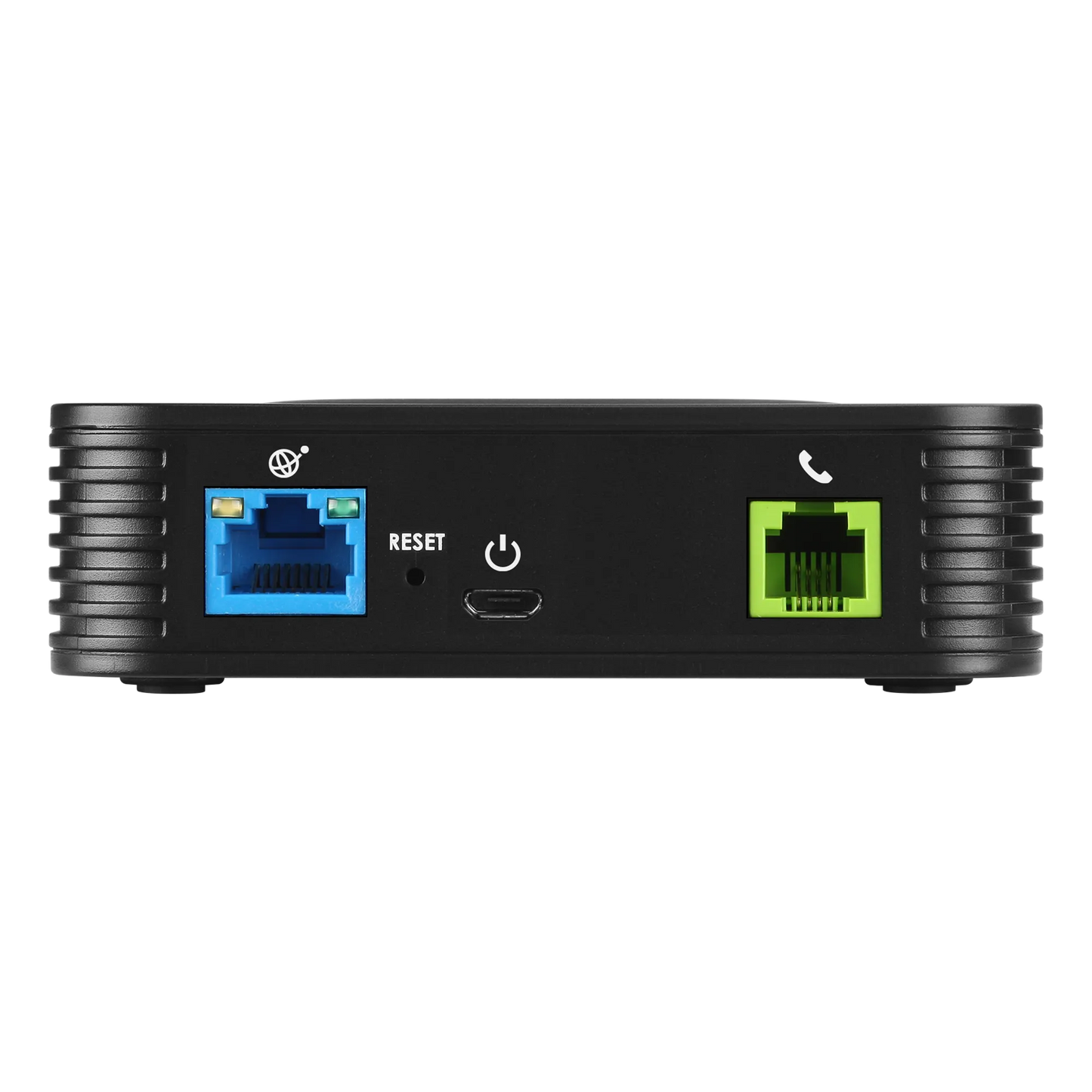

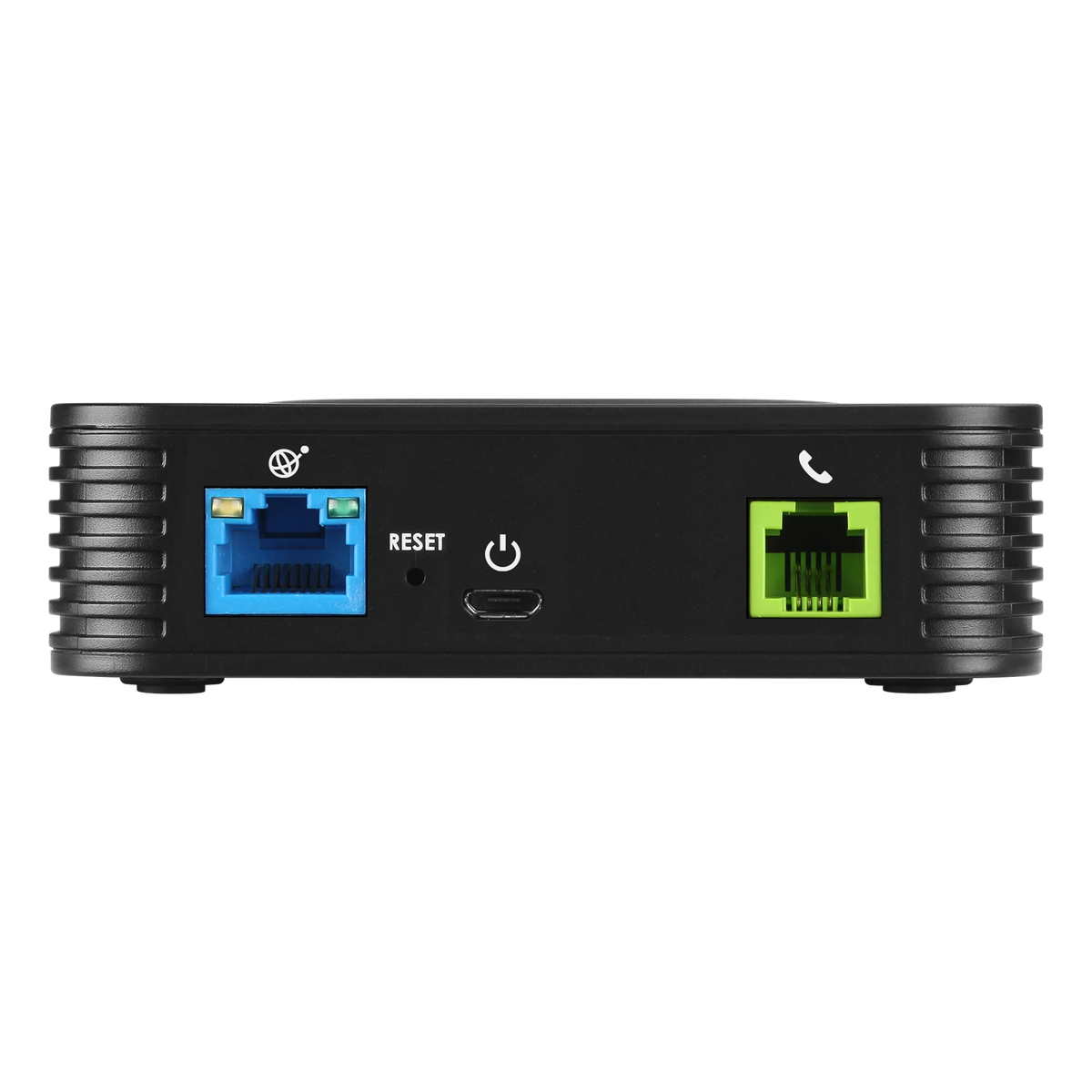

Grandstream-HT801

Grandstream-HT801

LE 8,850.00 EGP
LE 8,850.00 EGP
Sale Sold out
Shipping calculated at checkout.

Grandstream HT801 – Key Features & Specifications

Feature Specification
Product Model Grandstream HT801
Product Type 1-Port Analog Telephone Adapter (ATA)
FXS Port 1 × RJ11 FXS port
SIP Profile 1 SIP profile
Network Interface 1 × 10/100 Mbps auto-sensing Ethernet RJ45
Voice Codecs G.711, G.722, G.723.1, G.729A/B, G.726, iLBC, Opus
Echo Cancellation Advanced Line Echo Cancellation
Voice Features Dynamic Jitter Buffer, VAD/CNG and Packet Loss Concealment (PLC)
Fax Support T.38 Group 3 Fax Relay up to 14.4 kbps + G.711 Fax Pass-through
Caller ID Bellcore Type 1/2, ETSI, BT, NTT and DTMF-based CID
Telephony Features Call Waiting, Call Transfer, Call Forwarding, Hold, DND, Flash and 3-Way Conference
DTMF In-audio, RFC2833 and/or SIP INFO
Security TLS/SIPS, HTTPS and SRTP
Provisioning TR-069, TFTP, HTTP/HTTPS, FTP/FTPS and XML configuration
Failover Automatic switching to a secondary SIP server if the primary server becomes unavailable
QoS Layer 2 VLAN/802.1p and Layer 3 ToS/DiffServ/MPLS
Management Web Interface, SSH, Telnet and Syslog
LED Indicators POWER, INTERNET and PHONE
Power Supply 100–240 VAC, 50/60 Hz; 5 VDC / 1 A
Dimensions 100 × 100 × 29.5 mm
Operating Temperature 0°C to 40°C
Ring Load Up to 5 REN, up to 1 km on 24 AWG
Key Benefit Compact single-port ATA for connecting an analog phone or fax device to a SIP/VoIP network
