Grandstream

Grandstream-UCM6301

Grandstream-UCM6301

LE 30,000.00 EGP
LE 30,000.00 EGP
Sale Sold out
Shipping calculated at checkout.

Grandstream UCM6301 – Key Features & Specifications

Feature Specification

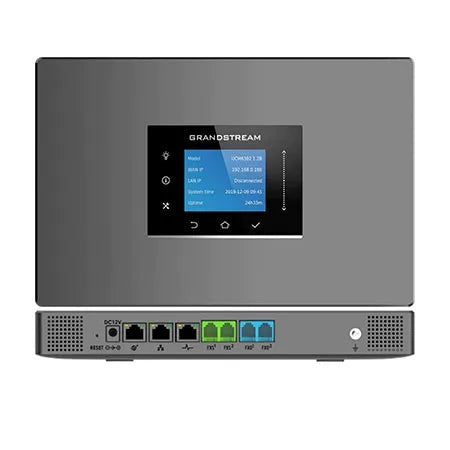

Product Model Grandstream UCM6301
Product Type Enterprise IP PBX / Unified Communications Platform
Maximum Users Up to 500 users
Concurrent Calls Up to 75 concurrent G.711 calls
Concurrent SRTP Calls Up to 50 concurrent G.711 SRTP calls
FXS Ports 1 × RJ11 FXS with lifeline capability
FXO Ports 1 × RJ11 FXO with lifeline capability
Network Ports 3 × self-adaptive Gigabit Ethernet ports with PoE+
NAT Router Integrated NAT router supporting Router and Switch modes
USB 1 × USB 3.0
Storage 1 × SD card interface
Display 320 × 240 color LCD with touchscreen
Operating System Based on Asterisk 16
Voice Codecs Opus, G.711 A-law/U-law, G.722, G.722.1/1C, G.723.1, G.726-32, G.729A/B, iLBC and GSM
Fax Support T.38
Video Codecs H.265, H.264, H.263, H.263+ and VP8
Echo Cancellation Carrier-grade Line Echo Cancellation with 128 ms tail length
Conference Built-in audio/video conferencing and multimedia meeting platform
IVR Up to 5 layers of customizable IVR
Call Center Multiple call queues, ACD and in-queue announcements
API Full API for third-party platform and application integration
Provisioning AES-encrypted XML, ZeroConfig, DHCP Option 66, SIP SUBSCRIBE and mDNS
Security SRTP, TLS, HTTPS, SSH, 802.1X and ZRTP
Management Web-based management, GDMS cloud management and remote provisioning
QoS 802.1Q/802.1p, ToS, DiffServ and MPLS
Mounting Desktop / Wall Mount
Power Supply 100–240 VAC, 50/60 Hz; 12 VDC / 1.5 A
Operating Temperature 0°C to 45°C
Dimensions 270 × 175 × 36 mm
Weight Approx. 715 g
Key Benefit Compact enterprise IP PBX supporting up to 500 users and 75 concurrent calls, with 1 FXS, 1 FXO, Gigabit networking, PoE+, conferencing, IVR, call-center functions and advanced UC capabilities
View full details
