Grandstream

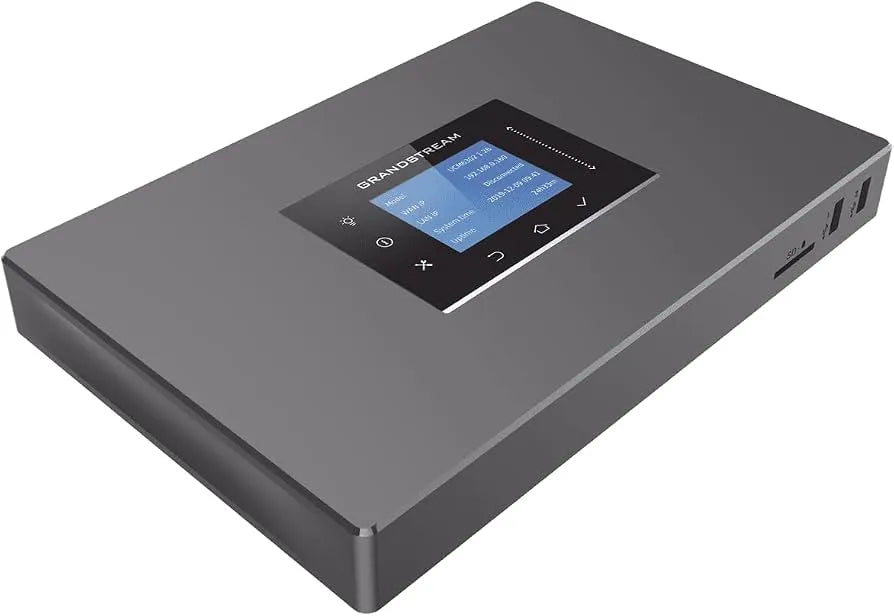

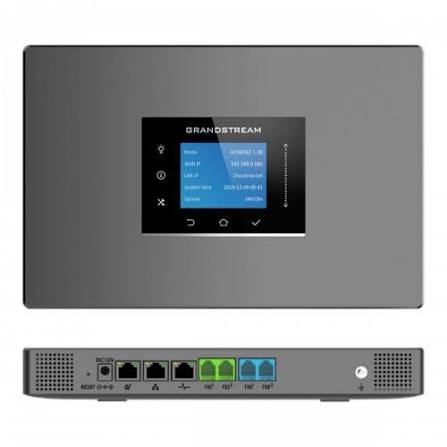

Grandstream-UCM6302

Grandstream-UCM6302

LE 33,500.00 EGP
LE 33,500.00 EGP
Sale Sold out
Shipping calculated at checkout.

Grandstream UCM6302 – Key Features & Specifications

Feature Specification
Product Model Grandstream UCM6302
Product Type Enterprise IP PBX / Unified Communications Platform
Maximum Users Up to 1,000 users
Concurrent Calls Up to 150 concurrent G.711 calls
Concurrent SRTP Calls Up to 100 concurrent G.711 SRTP calls

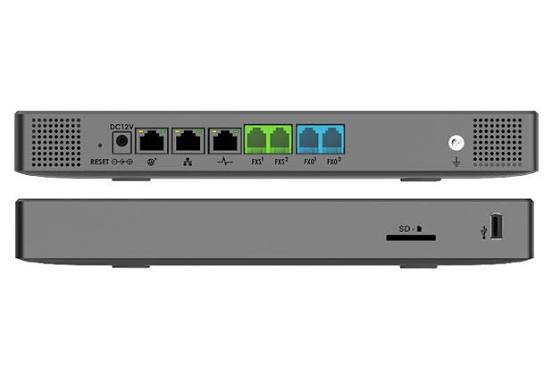

FXS Ports 2 × RJ11 FXS ports with lifeline capability
FXO Ports 2 × RJ11 FXO ports with lifeline capability
Network Ports 3 × self-adaptive Gigabit Ethernet ports with PoE+
NAT Router Integrated NAT router supporting Router and Switch modes
USB Ports 1 × USB 2.0 + 1 × USB 3.0
Storage 1 × SD card interface
Display 320 × 240 color LCD with touchscreen
Operating System Based on Asterisk 16
Voice / Fax Codecs Opus, G.711 A-law/U-law, G.722, G.722.1/1C, G.723.1, G.726-32, G.729A/B, iLBC and GSM; T.38 Fax
Echo Cancellation Carrier-grade Line Echo Cancellation with 128 ms tail length
Video Codecs H.264, H.263, H.263+ and VP8
IVR Up to 5 layers of customizable IVR
Call Center Multiple call queues, ACD and in-queue announcements
Conference Up to 8 simultaneous video conference rooms and up to 150 participants across all rooms
API Full API for integration with third-party platforms and applications
Provisioning AES-encrypted XML, ZeroConfig, DHCP Option 66, SIP SUBSCRIBE and mDNS
Security TLS, SRTP, HTTPS, SSH, 802.1X and secure configuration
Management Web-based management, GDMS cloud management and remote provisioning
QoS 802.1Q/802.1p, ToS, DiffServ and MPLS
Mounting Desktop / Wall Mount
Power Supply 100–240 VAC, 50/60 Hz; 12 VDC / 1.5 A
Operating Temperature 0°C to 45°C
Dimensions 270 × 175 × 36 mm
Weight Approx. 725 g
Key Benefit Enterprise IP PBX supporting up to 1,000 users and 150 concurrent calls, with 2 FXS, 2 FXO, Gigabit networking, video/audio conferencing, IVR, call-center functions and advanced UC capabilities
View full details
