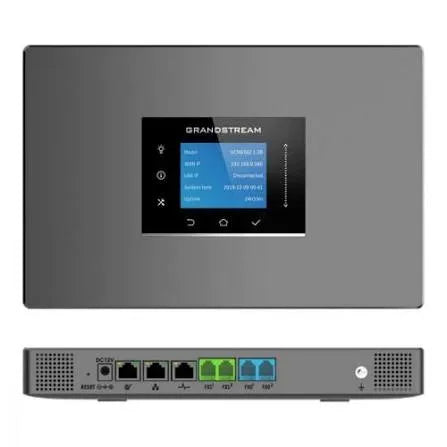

Grandstream-UCM6302A

Grandstream-UCM6302A

LE 23,000.00 EGP
LE 23,000.00 EGP
Sale Sold out
Shipping calculated at checkout.

Grandstream UCM6302A – Key Features & Specifications

Feature Specification
Product Model Grandstream UCM6302A
Product Type Enterprise IP PBX / Unified Communications Platform
SIP Users Up to 500 users
Concurrent Calls Up to 75 concurrent G.711 calls
Concurrent SRTP Calls Up to 75
FXS Ports 2 × RJ11
FXO Ports 2 × RJ11
Lifeline Supported on FXS/FXO ports during power failure
Network Interfaces 3 × Gigabit Ethernet (10/100/1000 Mbps) with PoE+
NAT Router Integrated; supports Router and Switch modes
USB Ports 1 × USB 2.0 + 1 × USB 3.0
Storage 1 × SD card interface
Display 320 × 240 color LCD with touchscreen
Voice Codecs Opus, G.711 A-law/U-law, G.722, G.722.1/1C, G.723.1, G.726, G.729A/B, iLBC, GSM
Fax T.38
Voice Processing Carrier-grade Line Echo Cancellation, Dynamic Jitter Buffer, NetEQ and FEC
QoS Layer 2 and Layer 3 QoS
Telephony OS Based on Asterisk 16
IVR Up to 5 layers of customizable IVR
Call Center Multiple call queues and ACD support
Audio Conferencing Up to 5 simultaneous public conference rooms / 75 participants
Security SRTP, TLS, HTTPS, SSH and 802.1X
Provisioning Mass provisioning with encrypted XML configuration and ZeroConfig
Management Web-based management and centralized device management capabilities
Power Supply 100–240 VAC, 50/60 Hz; 12 VDC / 1.5 A
Mounting Desktop / Wall Mount
Dimensions 270 × 175 × 36 mm
Weight Approx. 725 g
Operating Temperature 0°C to 45°C
Applications Small and medium businesses, offices, call centers and multi-extension IP telephony
Key Benefit High-capacity IP PBX supporting up to 500 users and 75 concurrent calls, with integrated FXS/FXO interfaces, Gigabit networking, PoE+, conferencing and advanced UC features
