Grandstream

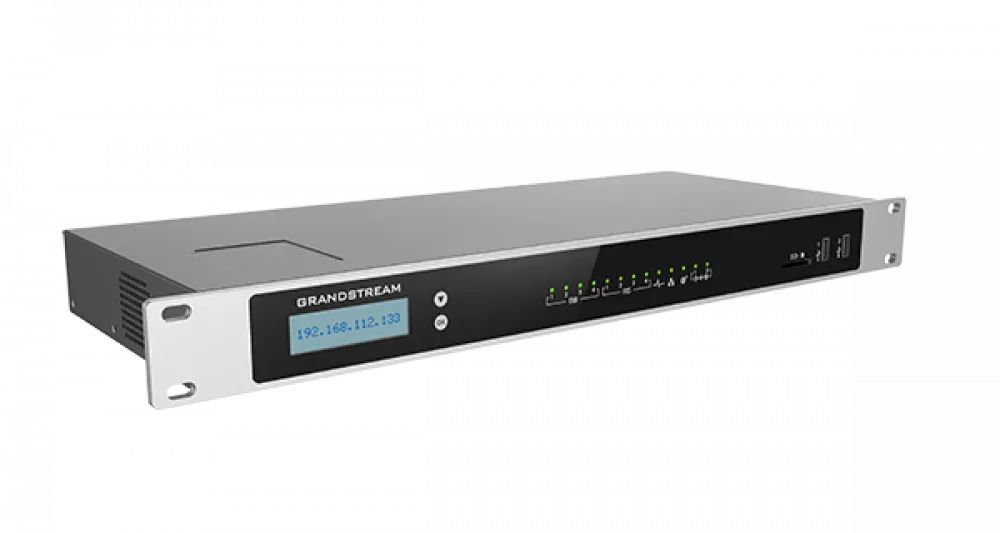

Grandstream-UCM6304

Grandstream-UCM6304

LE 75,800.00 EGP
LE 75,800.00 EGP
Sale Sold out
Shipping calculated at checkout.

Grandstream UCM6304 – Key Features & Specifications

Feature Specification
Product Model Grandstream UCM6304
Product Type Enterprise IP PBX / Unified Communications Platform
Maximum Users Up to 2,000 users
Concurrent Calls Up to 300 concurrent G.711 calls
Concurrent SRTP Calls Up to 200 concurrent G.711 SRTP calls
FXS Ports 4 × RJ11 FXS ports with lifeline capability
FXO Ports 4 × RJ11 FXO ports with lifeline capability
Network Ports 3 × self-adaptive Gigabit Ethernet ports with PoE+
NAT Router Integrated NAT router supporting Router and Switch modes
USB Ports 2 × USB 3.0
Storage 1 × SD card interface
Display 128 × 32 dot-matrix graphical LCD
Operating System Based on Asterisk 16
Voice Codecs Opus, G.711 A-law/U-law, G.722, G.722.1/1C, G.723.1, G.726-32, G.729A/B, iLBC and GSM
Fax Support T.38
Video Codecs H.264, H.263, H.263+ and VP8
Echo Cancellation Carrier-grade Line Echo Cancellation with 128 ms tail length
QoS Layer 2: 802.1Q/802.1p; Layer 3: ToS, DiffServ and MPLS
API Full API for third-party platform and application integration
Provisioning AES-encrypted XML, ZeroConfig, DHCP Option 66, SIP SUBSCRIBE and mDNS
Network Protocols SIP, TCP/UDP/IP, RTP/RTCP, IAX, IPv6, HTTP/HTTPS, SSH, LDAP, SRTP, TLS, OpenVPN and others
Security SRTP, TLS, HTTPS, SSH and 802.1X
Call Center Multiple call queues, ACD and in-queue announcements
IVR Up to 5 layers of customizable IVR
Management Web-based management and remote provisioning
Mounting Rack Mount / Desktop
Power Supply 100–240 VAC, 50/60 Hz; 12 VDC / 2 A
Operating Temperature 0°C to 45°C
Dimensions 485 × 187.2 × 46.2 mm
Weight Approx. 2.49 kg
Key Benefit High-capacity IP PBX supporting up to 2,000 users and 300 concurrent calls, with 4 FXS, 4 FXO, Gigabit networking, video/voice conferencing, IVR, call-center functions and advanced UC capabilities
