Grandstream UCM6308A – Key Features & Specifications

Feature Specification
Product Model Grandstream UCM6308A
Product Type Enterprise IP PBX / Unified Communications Platform
Maximum Users Up to 1,500 users
Concurrent Calls Up to 200 concurrent G.711 calls
Concurrent SRTP Calls Up to 150 concurrent G.711 SRTP calls

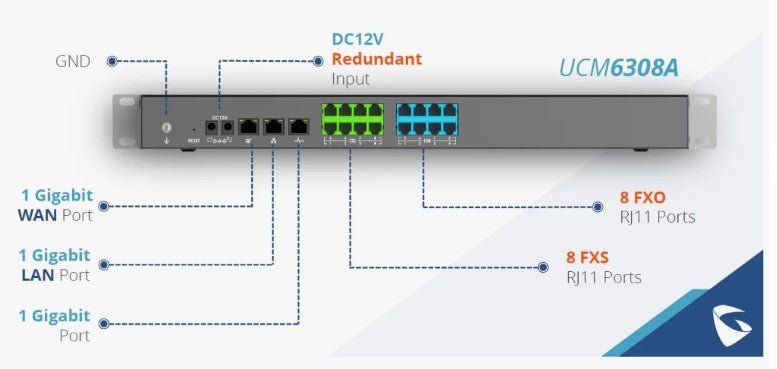

FXS Ports 8 × RJ11 FXS ports with lifeline capability
FXO Ports 8 × RJ11 FXO ports with lifeline capability
Network Ports 3 × self-adaptive Gigabit Ethernet ports with PoE+
NAT Router Integrated NAT router with Router / Switch modes
USB Ports 2 × USB 3.0
Storage 1 × SD card interface
Display 128 × 32 dot-matrix graphical LCD
Voice Codecs Opus, G.711 A/U, G.722, G.722.1/1C, G.723.1, G.726-32, G.729A/B, iLBC and GSM
Fax Support T.38
Echo Cancellation Carrier-grade Line Echo Cancellation with 128 ms tail length
QoS Layer 2: 802.1Q / 802.1p; Layer 3: ToS / DiffServ / MPLS
Telephony OS Based on Asterisk version 16
API Full API for third-party platform and application integration
Provisioning AES-encrypted XML, ZeroConfig, DHCP Option 66, SIP SUBSCRIBE and mDNS
Security SRTP, TLS, HTTPS, SSH and 802.1X
Call Center Configurable call queues, ACD and in-queue announcements
IVR Up to 5 layers of customizable IVR
Conference Capacity Up to 9 simultaneous meeting rooms / 150 participants
Call Features IVR, DID/DOD, call recording, voicemail, call queues, paging/intercom, BLF, SCA, fax-to-email, voicemail-to-email and more
Management Web-based management and GDMS cloud management
Mounting Rack Mount / Desktop
Power Supply 2 × DC 12V power inputs; 100–240 VAC, 50/60 Hz
Operating Temperature 0°C to 45°C
Dimensions 485 × 187.2 × 46.2 mm
Weight Approx. 2.54 kg
Key Benefit High-capacity enterprise IP PBX supporting up to 1,500 users and 200 concurrent calls, with 8 FXS, 8 FXO, Gigabit PoE+ networking, conferencing, IVR, call-center functions and advanced UC capabilities
