| Product Model |

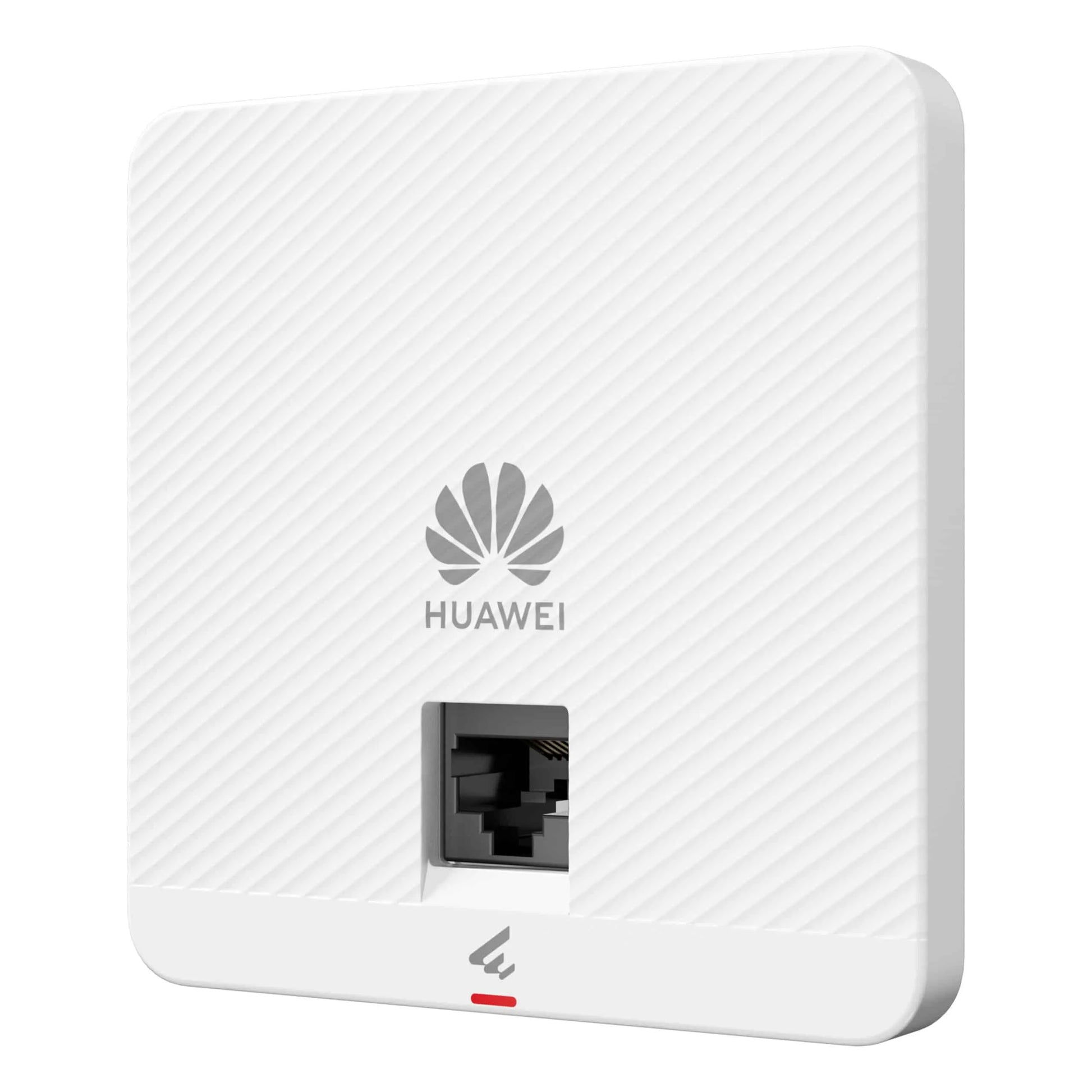

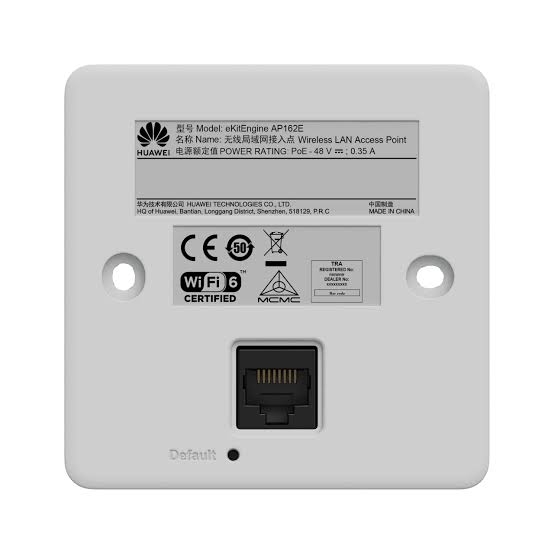

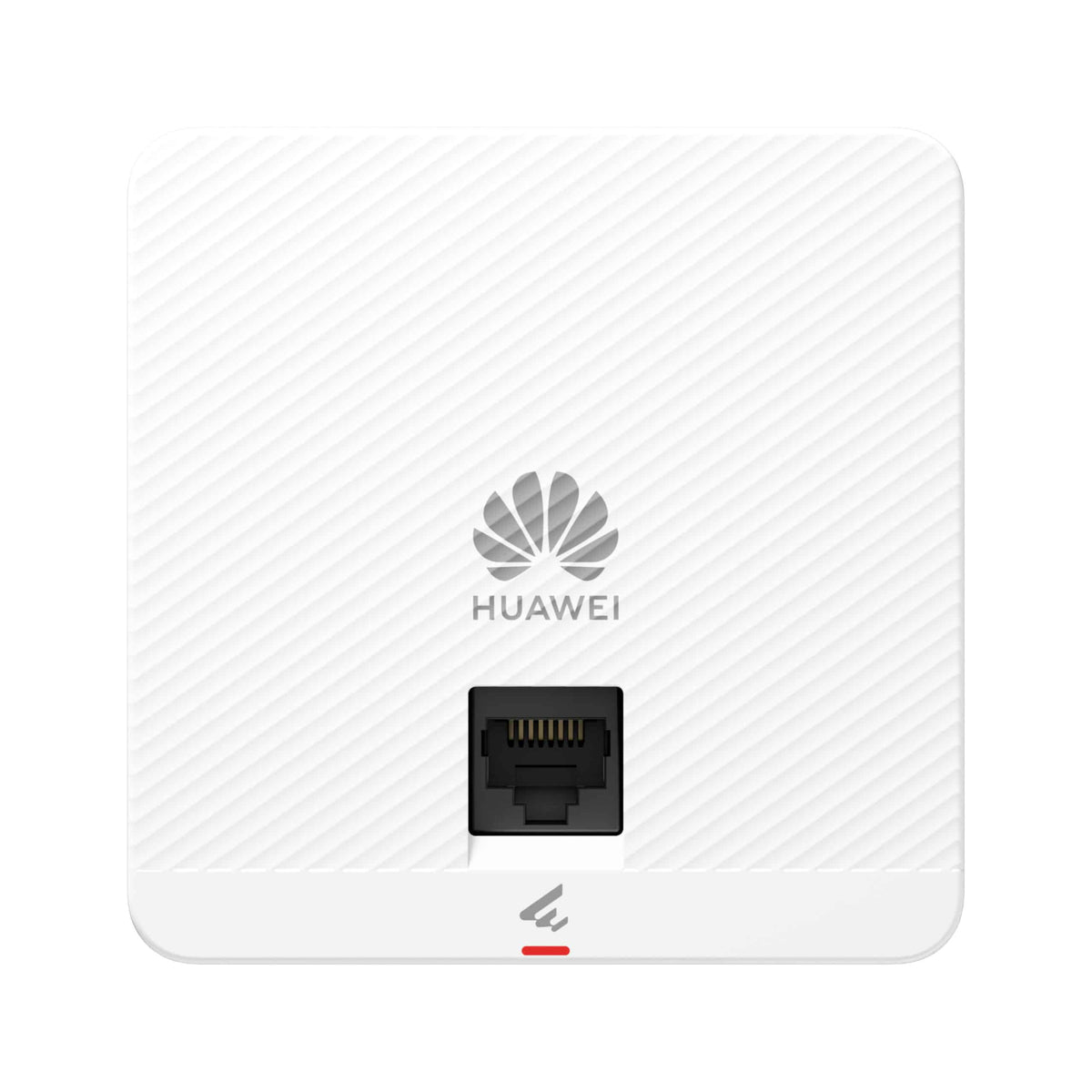

Huawei eKit AP162E |
| Product Type |
Indoor Wall-Plate Wi-Fi 6 Access Point |
| Wi-Fi Standard |
IEEE 802.11ax (Wi-Fi 6) |
| Radio Configuration |
Dual-Radio: 2.4 GHz + 5 GHz |
| Device Rate |
Up to 2.975 Gbps
|
| 2.4 GHz |
2×2 MIMO, up to 575 Mbps
|
| 5 GHz |
2×2 MIMO, up to 2.4 Gbps
|
| Channel Bandwidth |
40 MHz @ 2.4 GHz / 160 MHz @ 5 GHz |
| Recommended Users |
Up to 48 users
|
| Maximum Users |
Up to 128 users
|
| Optimal Coverage |
Up to 15 m
|
| Network Ports |
2 × Gigabit RJ45 (10/100/1000M) |
| Power Supply |
IEEE 802.3af PoE |
| Maximum Power Consumption |
9.1 W |
| Antenna |
Built-in Smart Antennas |
| Antenna Gain |
2.4 GHz: 3 dBi/chain; 5 GHz: 2 dBi/chain |
| Maximum Transmit Power |
20 dBm combined per radio |
| Installation |
86 × 86 mm standard junction box |
| Dimensions (H × W × D) |
86 × 86 × 42.5 mm |
| Weight |
Approx. 0.14 kg
|
| Operating Temperature |
0°C to +40°C |
| Operating Humidity |
5%–95% RH, non-condensing |
| Management |
Huawei eKit App, SNC, EasyWeb / WAC |
| Applications |
Hotels, offices, commercial stores, meeting rooms and SME indoor Wi-Fi coverage |
