Key Specifications
Wi-Fi Standard: Wi-Fi 7 (IEEE 802.11be) supporting dual-band operation on 2.4 GHz and 5 GHz.
Maximum Speed: 689 Mbps on 2.4 GHz and 2.88 Gbps on 5 GHz.
User Capacity: Supports up to 256 connected users, with 150 recommended for optimal performance.

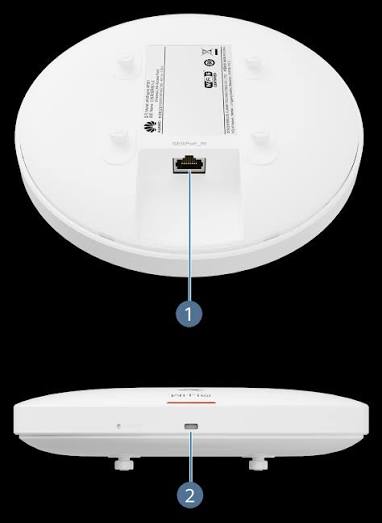

Physical Ports: One 2.5GE (RJ45) auto-sensing port.
Antennas: Built-in smart antennas that automatically adjust coverage direction and signal strength.
Power Options: Powered via DC (12V) or PoE (802.3at/af) with a maximum power consumption of 13.3W.
Size: 180 mm diameter by 35 mm depth (7.09 in x 1.38 in)
Weight: 0.47 kg (1.04 lb)
If you are planning a deployment, tell me:
-
How large is the area you need to cover?
-
How many concurrent users or devices do you expect per room or floor?
-
What PoE switch or power setup do you currently use?
I can help estimate how many units you need or advise on setup compatibility.
