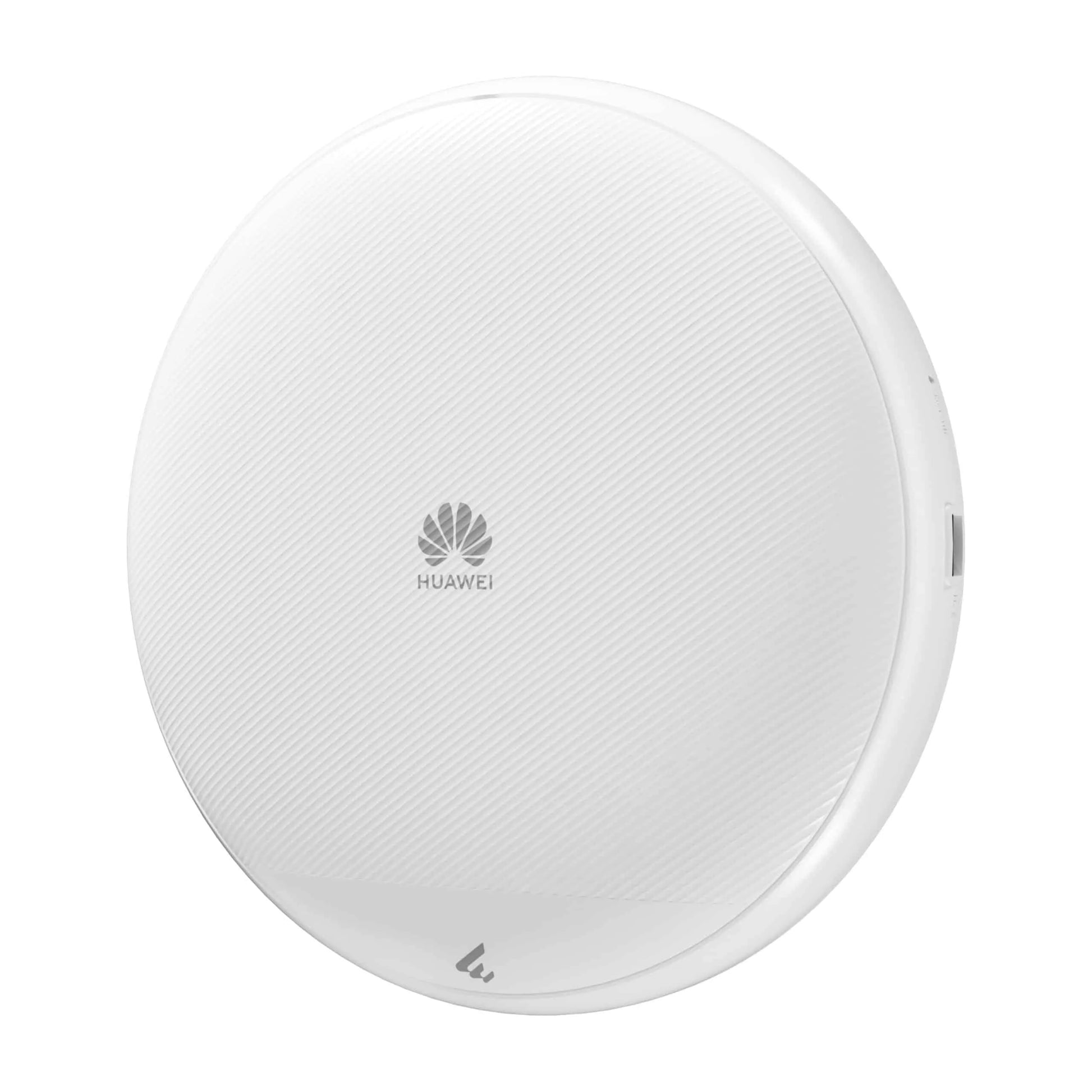

Huawei eKit AP673E Wi-Fi 7 Indoor Access Point
Huawei eKit AP673E Wi-Fi 7 Indoor Access Point
Regular price
LE 14,995.00 EGP
Regular price
Sale price
LE 14,995.00 EGP
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Huawei eKit AP673E Wi-Fi 7 Indoor Access Point – Key Features & Specifications
| Feature | Specification |
|---|---|
| Product Model | Huawei eKit AP673E |
| Part Number | 50088144 |
| Product Type | Indoor High-Density Wi-Fi 7 Access Point |
| Wi-Fi Standard | IEEE 802.11be (Wi-Fi 7) |
| Radio Configuration | Tri-Radio: 2.4 GHz + 5 GHz High + 5 GHz Low |
| Device Rate | Up to 7.89 Gbps |
| 2.4 GHz | 2×2 MIMO, up to 690 Mbps |
| 5 GHz High | 2×2 MIMO, up to 1.44 Gbps |
| 5 GHz Low | 4×4 MIMO, up to 5.76 Gbps |
| Channel Bandwidth | 40 MHz @ 2.4 GHz / 80 MHz @ 5 GHz-H / 160 MHz @ 5 GHz-L |
| Recommended Users | Up to 180 users |
| Maximum Users | Up to 1,024 users |
| Optimal Coverage | Up to 30 m |
| Uplink Port | 1 × 5GE RJ45 |
| Downlink Port | 1 × 10/100/1000/2500M RJ45 |
| Wi-Fi 7 Features | MLO, 4096-QAM, Multi-RU, MU-MIMO |
| Antenna | Built-in Smart Antennas |
| Antenna Gain | 2.4 GHz: 4 dBi/chain; 5 GHz: 5 dBi/chain |
| Maximum Transmit Power | Up to 26 dBm combined on 5 GHz 4×4 radio |
| Power Supply | IEEE 802.3bt/at/af PoE or DC |
| Maximum Power Consumption | 22.3 W, excluding USB and PoE output |
| Installation | Wall / Ceiling / Rail / Junction Box |
| Dimensions | Ø220 × 45 mm |
| Weight | Approx. 0.74 kg |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | 5%–95% RH, non-condensing |
| Management | Huawei eKit App, SME Network Center (SNC), S380 EasyWeb / WAC |
| Applications | High-density offices, classrooms, meeting rooms, hotels, auditoriums and enterprise indoor environments |
