Huawei eKit

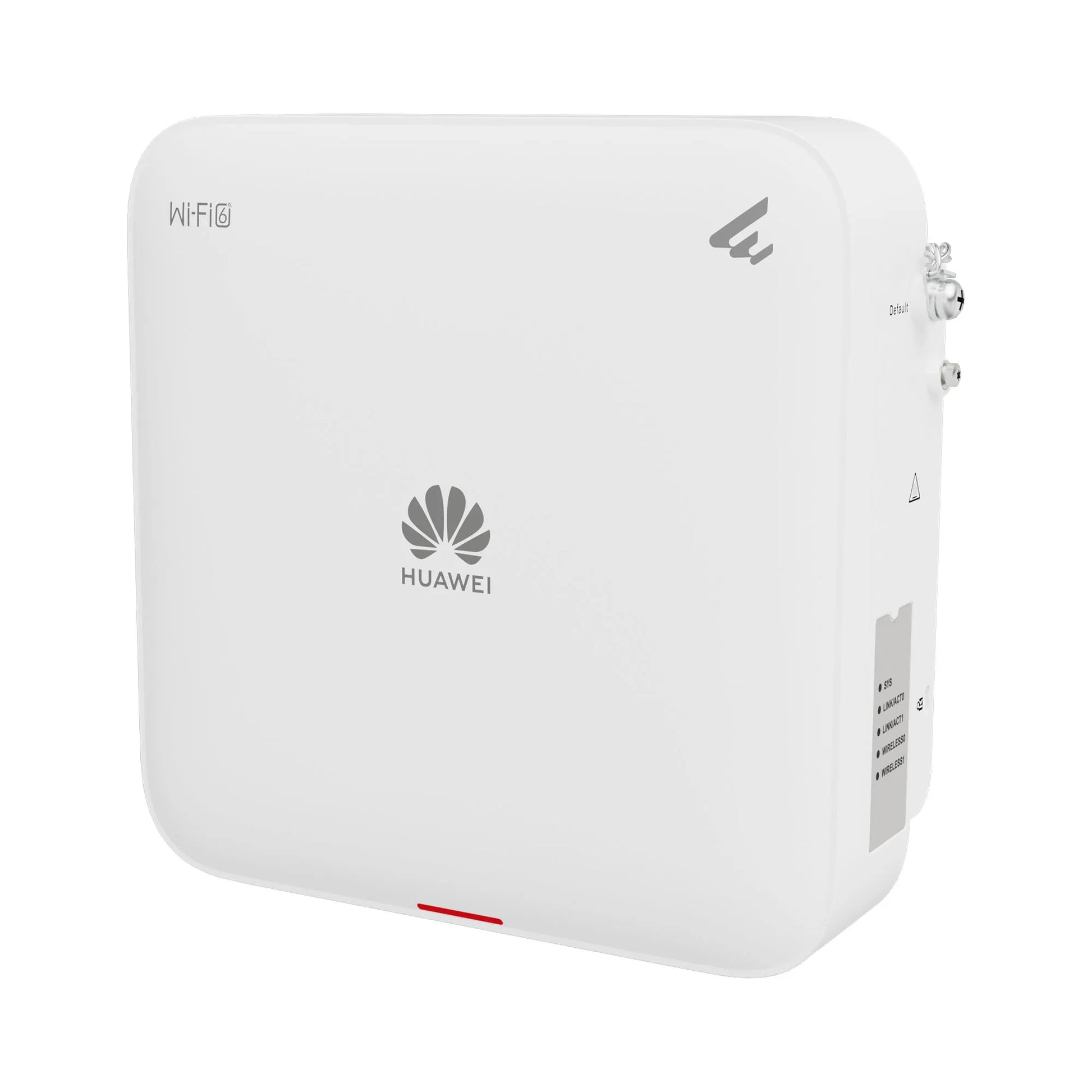

Huawei eKit AP761 Outdoor Access Point

Name: Huawei eKit AP761 Outdoor Access Point
Brand: Huawei eKit
Price: 19220.00 EGP
Availability: InStock

LE 19,220.00 EGP

Sale Sold out

Shipping calculated at checkout.

Feature	Specification
Product Model	Huawei eKit AP761
Part Number	02355VFB
Product Type	Outdoor Wi-Fi 6 Access Point
Wi-Fi Standard	802.11b/g/n/ax @ 2.4 GHz; 802.11a/n/ac/ac Wave 2/ax @ 5 GHz
Radio Configuration	Dual-Radio, 2.4 GHz + 5 GHz
Device Rate	Up to 1.775 Gbps
MIMO	2×2 MIMO on both 2.4 GHz and 5 GHz
Channel Bandwidth	40 MHz @ 2.4 GHz / 80 MHz @ 5 GHz
Recommended Users	Up to 120 users
Maximum Users	Up to 1,024 users
Optimal Coverage Distance	Up to 180 m
Ethernet Port	1 × 10/100/1000M Gigabit RJ45
Optical Uplink	1 × Gigabit SFP
Power Supply	IEEE 802.3af/at PoE
Maximum Power Consumption	17.7 W
Maximum Transmit Power	28 dBm @ 2.4 GHz / 27 dBm @ 5 GHz
Antenna Type	Built-in Directional Antennas
Antenna Gain	10 dBi @ 2.4 GHz / 11 dBi @ 5 GHz
BLE Antenna Gain	5 dBi
SSID Capacity	Up to 16 SSIDs per radio
Installation	Wall / Pole mounting
Ingress Protection	IP68 – Dustproof and waterproof
Surge Protection	6 kA common mode
Operating Temperature	-40°C to +65°C
Operating Humidity	0%–100% RH
Dimensions (H × W × D)	69 × 200 × 200 mm
Weight	Approx. 1.91 kg
Applications	Outdoor Wi-Fi coverage, campuses, industrial areas, warehouses, public areas and outdoor enterprise networks
