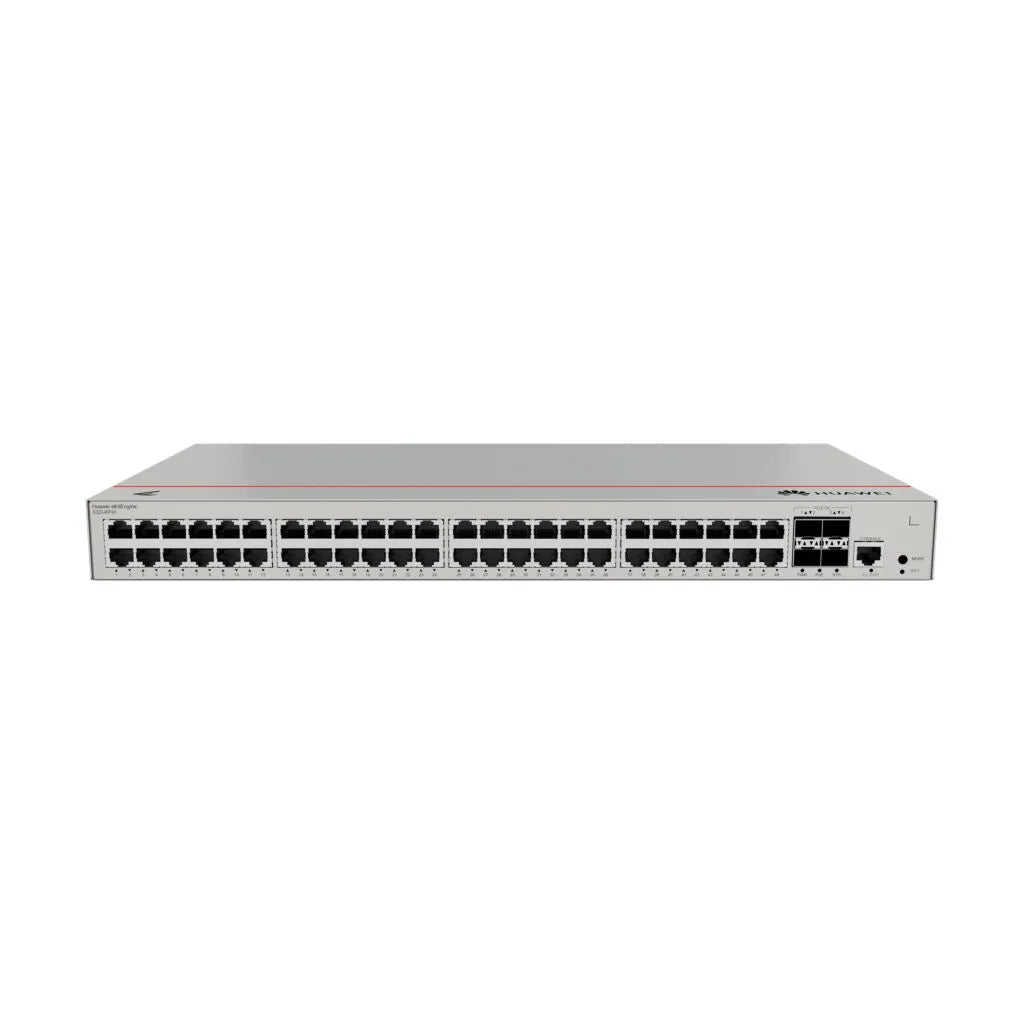

Huawei eKit S220S-48P4JX 48-Port PoE Switch
Huawei eKit S220S-48P4JX 48-Port PoE Switch
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Huawei eKit S220S-48P4JX 48-Port PoE Switch – Key Features & Specifications
| Feature | Specification |
|---|---|
| Product Model | Huawei eKit S220-48P4X |
| Product Type | Managed Gigabit PoE+ Switch |
| Downlink Ports | 48 × 10/100/1000BASE-T PoE+ |
| Uplink Ports | 4 × 10GE SFP+ |
| PoE Standard | IEEE 802.3af/at |
| PoE Budget | Up to 380 W |
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 131 Mpps |
| MAC Address Table | Up to 16K MAC addresses |
| VLAN | Up to 4,000 VLANs |
| Management | Web / Huawei eKit management |
| Chassis | Metal |
| Power Supply | Built-in AC |
| Cooling | Intelligent fan cooling |
| Installation | Rack / Desktop / Wall mounting |
| Dimensions (H × W × D) | 43.6 × 442 × 220 mm |
| Rack Height | 1U |
| Weight | 3.24 kg |
| Operating Temperature | -5°C to +50°C |
| Operating Humidity | 5%–95% RH, non-condensing |
| Applications | Enterprise networks, Wi-Fi APs, IP phones, CCTV and other PoE devices |
