Huawei eKit

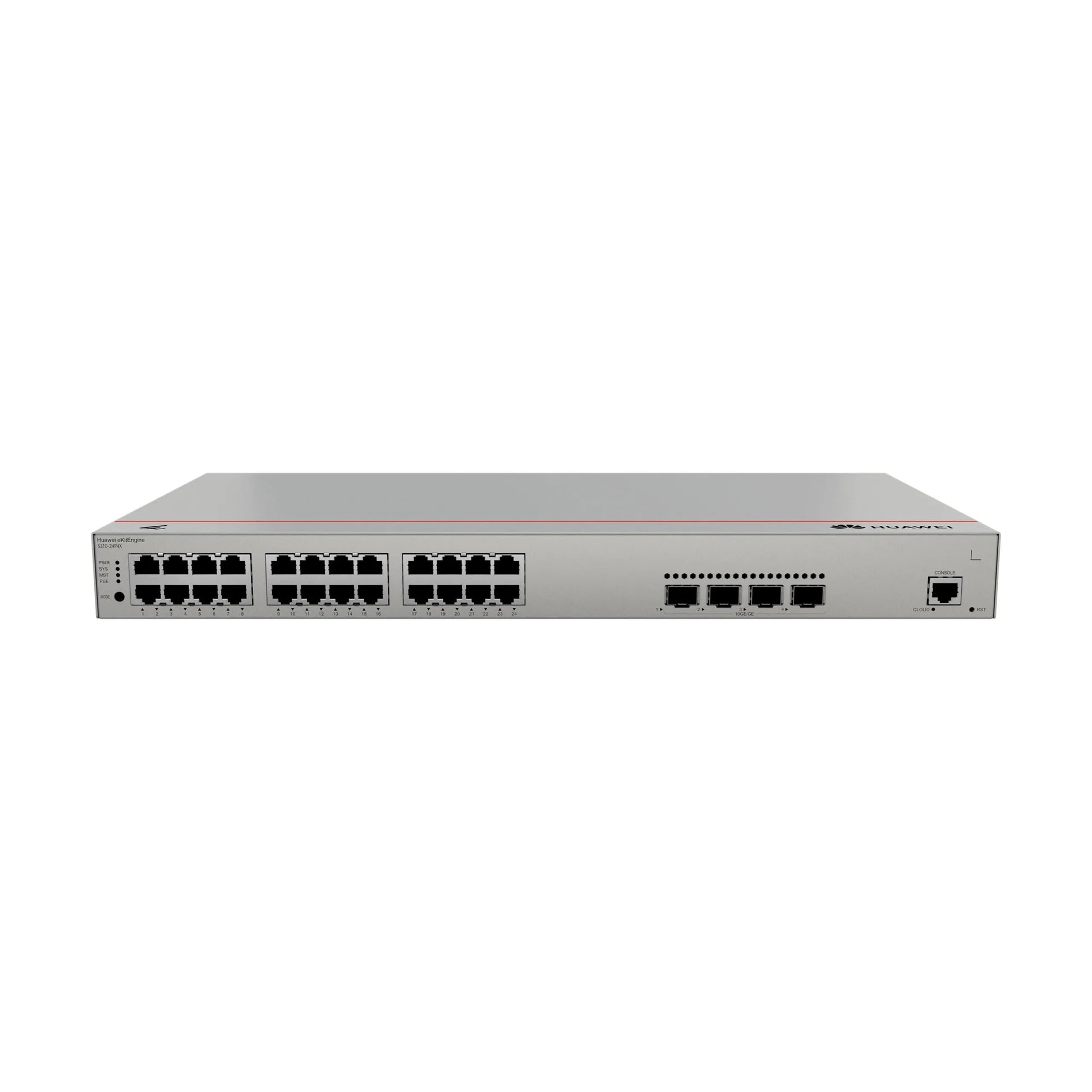

Huawei eKit S310-24P4X Layer 3 Switch
Huawei eKit S310-24P4X Layer 3 Switch
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Huawei eKit S310-24P4X Layer 3 Switch – Key Features & Specifications
| Feature | Specification |
|---|---|
| Product Model | Huawei eKit S310-24P4X |
| Product Type | Layer 3 Managed PoE+ Switch |
| Downlink Ports | 24 × 10/100/1000BASE-T PoE+ |
| Uplink Ports | 4 × 10GE SFP+ |
| PoE Standard | IEEE 802.3af/at |
| PoE Budget | Up to 400 W |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 96 Mpps |
| MAC Address Table | Up to 16K MAC entries |
| VLAN | Up to 4,000 VLANs |
| Layer 3 Routing | IPv4 Static Routing, Policy-Based Routing (PBR), IPv6 |
| Stacking | iStack – up to 4 switches of the same series |
| Reliability | ERPS, SmartLink, STP/RSTP/MSTP |
| QoS | Traffic classification and prioritization |
| Security | ACL and Layer 2/Layer 3 security features |
| Management | Web, CLI, SNMP and Huawei eKit management |
| Power Supply | Built-in AC power supply |
| Cooling | Intelligent fan-speed adjustment |
| Installation | Rack / Desktop / Wall mounting |
| Dimensions (H × W × D) | 43.6 × 442 × 220 mm |
| Rack Height | 1U |
| Weight | Approx. 2.92 kg |
| Operating Temperature | -5°C to +50°C |
| Operating Humidity | 5%–95% RH, non-condensing |
| Applications | Enterprise LAN, access/distribution networks, Wi-Fi APs, IP phones, CCTV and other PoE devices |
