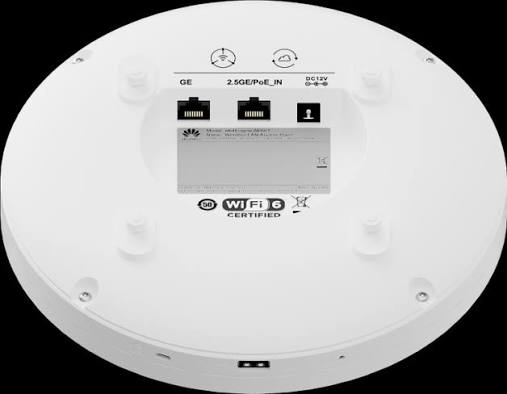

The Huawei eKitEngine AP266 is a slim, indoor wall-plate Wi-Fi 6 (802.11ax) wireless access point designed for high-density environments like budget hotels, hospitals, commercial stores, and schools.
Key Specifications & Features
Wi-Fi Standard: Wi-Fi 6 (802.11ax), supporting 1024-QAM and 160 MHz frequency bandwidth.
Data Rate: Up to 2.975 Gbps total (approx. 575 Mbps on 2.4 GHz and 2.4 Gbps on 5 GHz).
Spatial Streams / MIMO: Dual-band simultaneous 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) with MU-MIMO and OFDMA support.
Ports: 1 Gigabit Ethernet (GE) uplink port and 4 GE downlink ports (with one port supporting PoE OUT to power external devices like IP phones or cameras).
Power Consumption: Max 9.4 W (supports PoE input 802.3af/at/bt).
Management: Supports local management via EasyWeb or a Wireless Access Controller (WAC), plus remote cloud management via the Huawei eKit App and SNC platform.
Mounting: Flexible deployment on walls, ceilings, junction boxes, or desks.
