| Product Type |

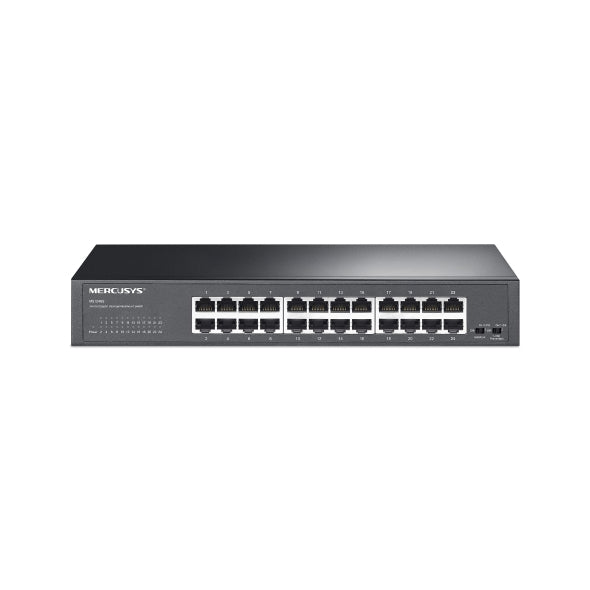

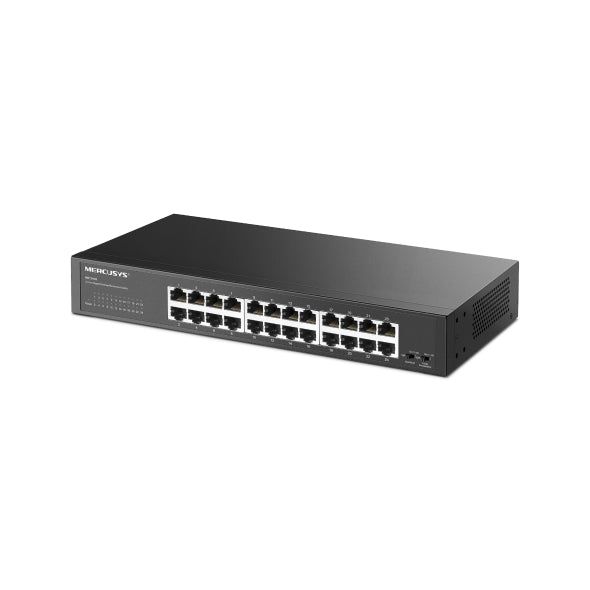

24-Port Gigabit Desktop/Rackmount Switch |
| Model |
MS124GS |
| Gigabit Ports |
24 × 10/100/1000 Mbps RJ45 |
| Port Features |
Auto-Negotiation, Auto-MDI/MDIX |
| Switching Capacity |
48 Gbps |
| Switching Method |
Store-and-Forward |
| MAC Address Table |
8K |
| Standards |
IEEE 802.3i / 802.3u / 802.3ab / 802.3x / 802.1p |
| Flow Control |
IEEE 802.3x |
| QoS |
IEEE 802.1p / DSCP |
| Loop Prevention |
Supported |
| Isolation Mode |
Supported; one-click traffic separation |
| Plug & Play |
Supported |
| Non-Blocking Switching |
Supported |
| Housing |
Durable Metal Casing |
| Cooling |
Silent / Fanless Operation |
| Mounting |
Desktop / Rackmount |
| LED Indicators |
Power / Link-Act / 1000 Mbps |
| Power Supply |
100–240 V AC, 50/60 Hz |
| Dimensions |
294 × 140 × 44 mm |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10%–90% RH, Non-Condensing |
| Storage Humidity |
5%–90% RH, Non-Condensing |
| Certifications |
CE, RoHS |
| Package Contents |
MS124GS, Power Cord, Rubber Feet, Rackmount Kit, Installation Guide |
