| Product Type |

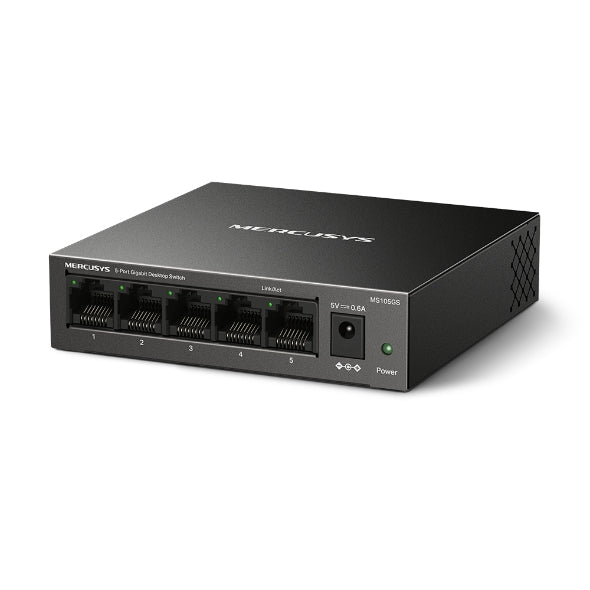

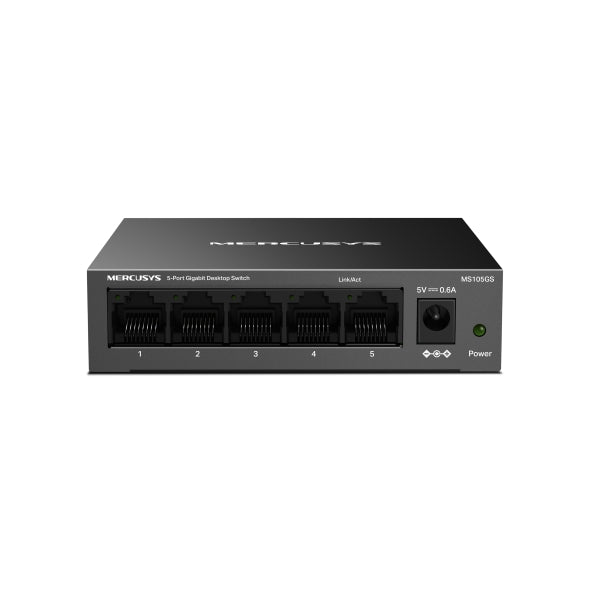

5-Port Gigabit Desktop Switch |
| Model |
MS105GS |
| Gigabit Ports |
5 × 10/100/1000 Mbps RJ45 |
| Auto-Negotiation |
Supported |
| Auto MDI/MDIX |
Supported |
| Switching Capacity |
10 Gbps |
| Switching Method |
Store-and-Forward |
| MAC Address Table |
2K, Auto-Learning & Auto-Aging |
| Buffer Capacity |
1 Mbit |
| Jumbo Frame |
Up to 9 KB |
| Flow Control |
IEEE 802.3x |
| QoS |
802.1p / DSCP |
| IGMP Snooping |
V1 / V2 / V3 |
| Power Saving |
Green Ethernet Technology |
| Cooling |
Fanless / Silent Operation |
| Housing |

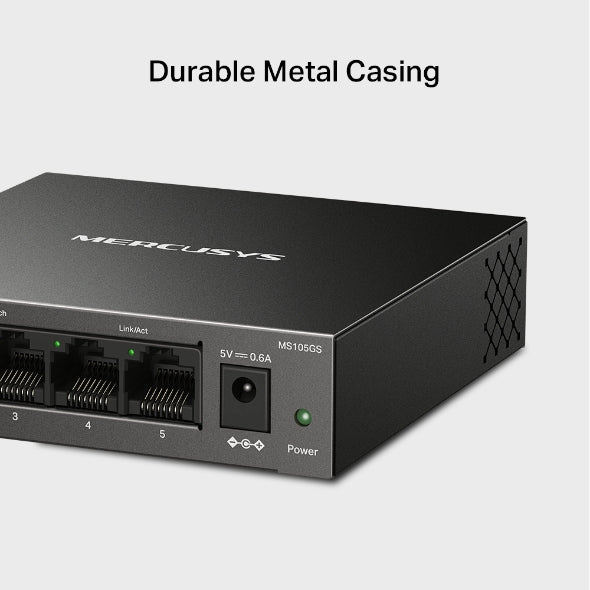

Durable Metal Casing |
| Installation |
Desktop / Wall Mount |
| Management |
Unmanaged / Plug & Play |
| Configuration |
No Configuration Required |
| Power Supply |
External Power Adapter, 5 V / 0.6 A |
| Data Rates |
10/100/1000 Mbps Half Duplex; 20/200/2000 Mbps Full Duplex |
| Dimensions |
3.92 × 3.86 × 0.99 in (Approx. 99.6 × 98 × 25.1 mm) |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10%–90% RH, Non-Condensing |
| Certifications |
CE, RoHS |
| Package Contents |
MS105GS, Power Adapter, Quick Installation Guide |
