| Product Type |
8-Port Gigabit Desktop Switch |
| Model |
MS108GS |
| Gigabit Ports |
8 × 10/100/1000 Mbps RJ45 |
| Auto-Negotiation |
Supported |
| Auto MDI/MDIX |
Supported |
| Switching Capacity |
16 Gbps |
| Switching Method |
Store-and-Forward |
| MAC Address Table |
8K, Auto-Learning & Auto-Aging |
| Flow Control |
IEEE 802.3x |
| Jumbo Frame |
Up to 15 KB |
| Standards |
IEEE 802.3 / 802.3u / 802.3x / 802.3p |
| Power Saving |
Green Ethernet Technology |
| Cooling |
Fanless / Silent Operation |

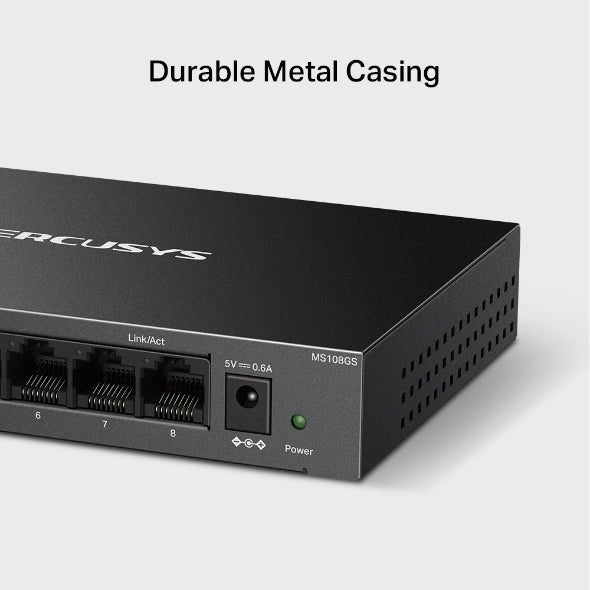

| Housing |
Durable Metal Casing |
| Installation |
Desktop / Wall Mount |
| Management |
Unmanaged / Plug & Play |
| Configuration |
No Configuration Required |
| Network Media |
Cat3 or higher for 10 Mbps; Cat5 or higher for 100 Mbps; Cat5e or higher for Gigabit |
| Power Supply |
External Power Adapter, 5 V / 0.6 A |
| Max Power Consumption |
4.22 W |
| LED Indicators |
Power, Link/Act |
| Dimensions |
158 × 99.1 × 25.2 mm |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10%–90% RH, Non-Condensing |
| Storage Humidity |
5%–95% RH, Non-Condensing |
| Certifications |
CE, RoHS |
| Package Contents |
MS108GS, Power Adapter, Quick Installation Guide |
