| Product Type |
10 Gigabit PCIe Network Adapter |
| Model |
MA510E |
| Maximum Network Speed |
Up to 10 Gbps |
| Interface |
1 × PCI Express 3.0 ×4 |
| Ethernet Port |
1 × RJ45 |
| Network Media |
10GBASE-T / 5GBASE-T / 2.5GBASE-T / 1000BASE-T / 100BASE-TX |
| Data Rate |
Auto-Negotiation: 10 Mbps / 100 Mbps / 1 Gbps / 2.5 Gbps / 5 Gbps / 10 Gbps |
| Flow Control |
802.3x Flow Control |
| Energy Efficiency |
802.3az Energy-Efficient Ethernet (EEE) |
| Wake-on-LAN |
Supported |

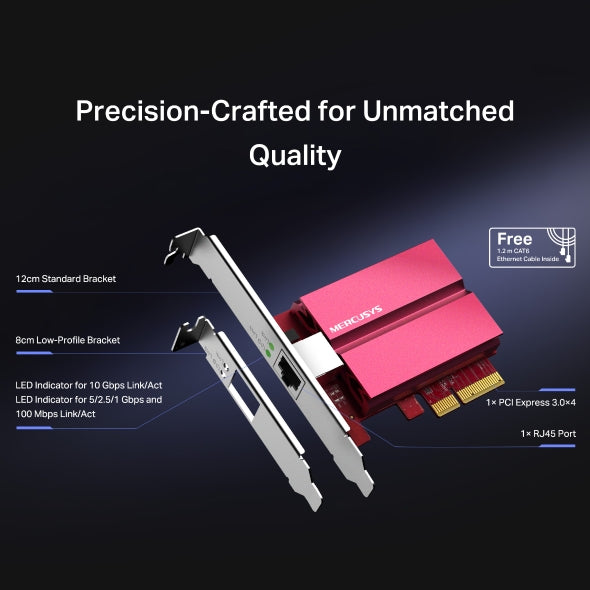

| Installation Brackets |

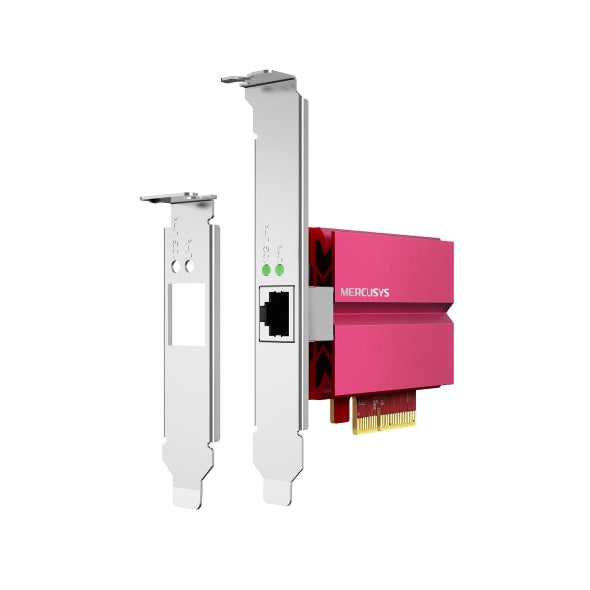

Standard Full-Height + Low-Profile Brackets |
| LED Indicators |
10 Gbps Link/Act + 5/2.5/1 Gbps & 100 Mbps Link/Act |
| Supported Standards |
802.3i, 802.3u, 802.3ab, 802.3bz, 802.3an |
| Operating Systems |
Windows 11/10/8.1/8, Windows Server 2022/2019/2016/2012 R2, Linux |
| Linux Support |
Linux Kernel 3.10 and later |
| Dimensions |
120.8 × 98.2 × 21.5 mm |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10%–90% RH, Non-Condensing |
| Storage Humidity |
5%–90% RH, Non-Condensing |
| Certifications |
CE, RoHS |
| Package Contents |
MA510E Adapter, Standard/Low-Profile Brackets, 1.2 m CAT6 Ethernet Cable, Quick Installation Guide, Resource CD |
