| Product Type |

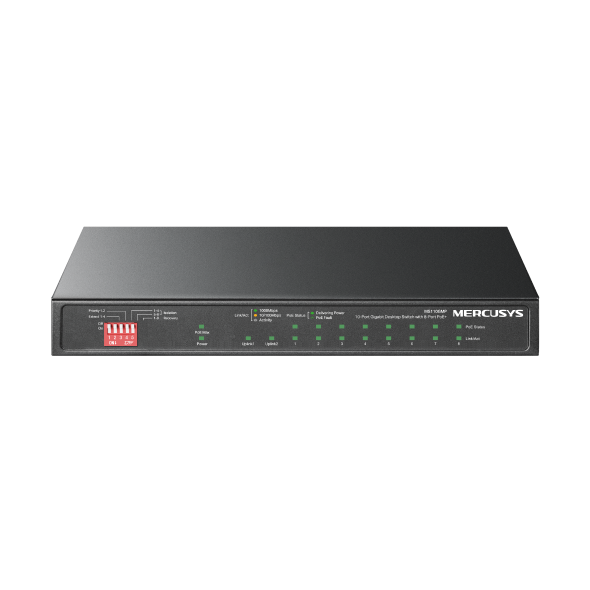

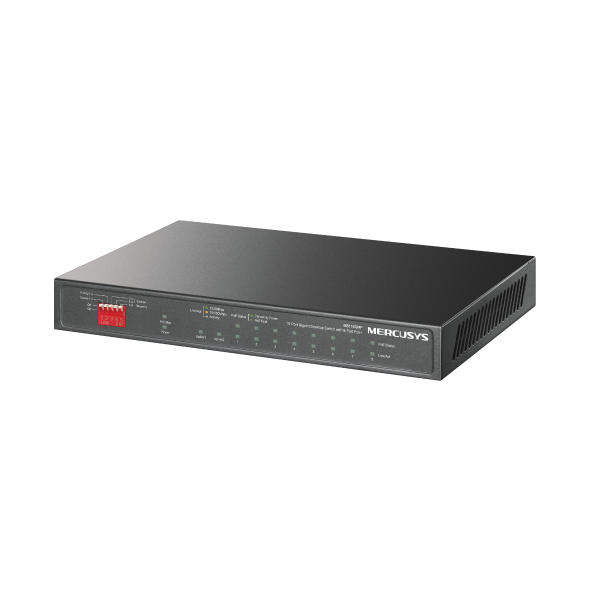

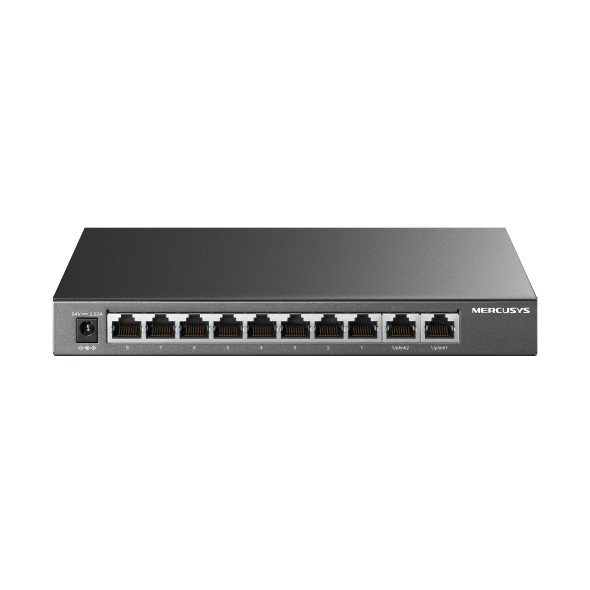

10-Port Gigabit Desktop PoE+ Switch |
| Model |
MS110GMP |
| PoE+ Ports |
8 × 10/100/1000 Mbps RJ45 |
| Gigabit Uplink Ports |
2 × 1000 Mbps RJ45 |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| PoE Power per Port |
Up to 30 W |
| Total PoE Budget |
111 W |

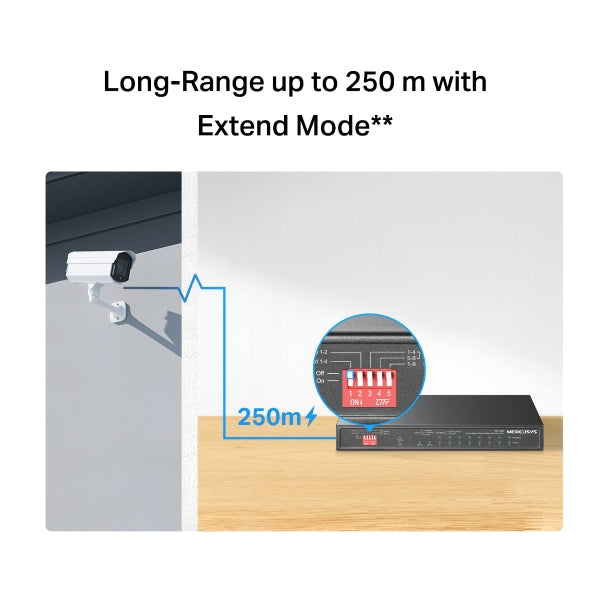

| Long-Range PoE |
Up to 250 m with Extend Mode |
| Extend Mode |
Ports 1–4 |
| Extend Mode Speed |
10 Mbps |
| Priority Mode |
Ports 1–2 |
| Isolation Mode |
Ports 1–4 / 5–8 |
| PoE Auto Recovery |
Supported on Ports 1–8 |
| Switching Capacity |
20 Gbps |
| Packet Forwarding Rate |
14.88 Mpps |
| MAC Address Table |
4K |
| Jumbo Frame |
16 KB |
| Switching Method |
Store-and-Forward |
| Flow Control |
IEEE 802.3x |
| Auto-Negotiation |
Supported |
| Auto MDI/MDIX |
Supported |
| Fan |
Fanless Design |
| Housing |
Durable Metal Casing |
| Physical Security Lock |
Supported |
| Mounting |
Desktop / Wall Mount |
| Management |
Unmanaged / Plug & Play |
| Power Supply |
External Power Adapter, 54 VDC / 2.22 A |
| Max Power Consumption |
7.37 W without PDs / 129.4 W with 111 W PoE load |
| Dimensions |
209 × 126 × 26 mm |
| Operating Temperature |
-10°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10%–90% RH, Non-Condensing |
| Storage Humidity |
5%–90% RH, Non-Condensing |
| Certifications |
CE, RoHS |
| Package Contents |
MS110GMP, Power Adapter, Installation Guide |
