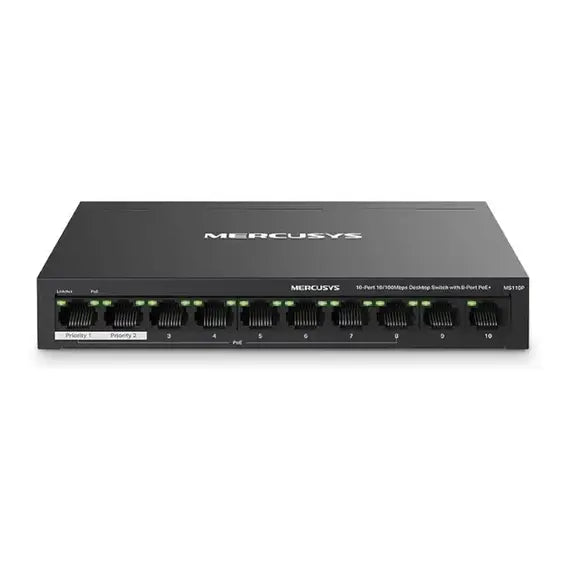

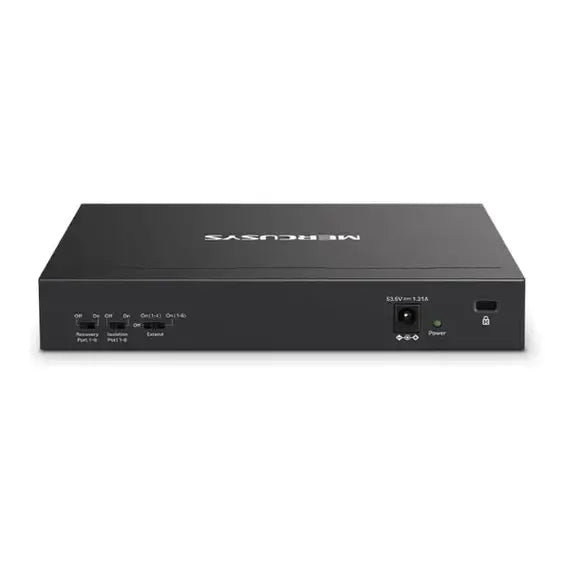

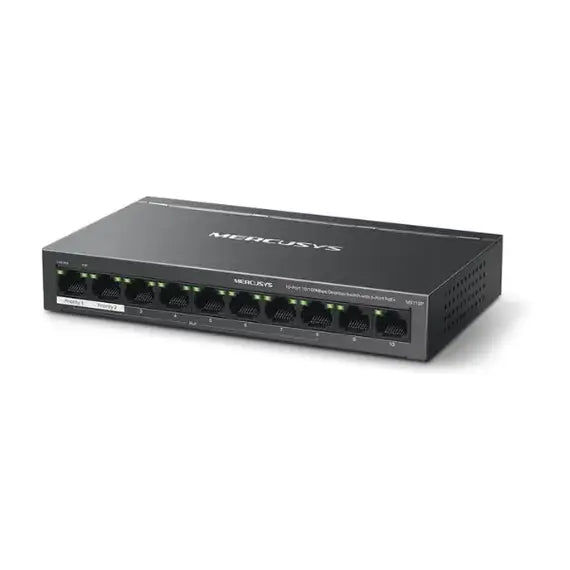

Mercusys MS110P PoE+ Switch, 10-Ports 10/100Mbps, With 2 Uplink Ports

Mercusys MS110P PoE+ Switch, 10-Ports 10/100Mbps, With 2 Uplink Ports

LE 1,375.00 EGP
LE 1,375.00 EGP
Sale Sold out
Shipping calculated at checkout.

Mercusys MS110P – 10-Port 10/100Mbps PoE+ Switch

Key Feature Specification
Product Type Desktop PoE+ Fast Ethernet Switch
Model MS110P
Total Ports 10 × 10/100 Mbps RJ45
PoE+ Ports 8 × PoE+ (Ports 1–8)
Uplink Ports 2 × 10/100 Mbps
PoE Standard IEEE 802.3af/at
PoE Power per Port Up to 30 W
Total PoE Budget 63 W
PoE Auto Recovery Supported
Extend Mode Up to 250 m PoE transmission distance*
Isolation Mode Supported
Auto-Negotiation Supported
Auto MDI/MDIX Supported
Switching Capacity 2.0 Gbps
MAC Address Table 2K
Jumbo Frame 2 KB
Flow Control IEEE 802.3x
Forwarding Mode Store and Forward
Fanless Design Yes – Silent Operation
Housing Metal Casing
Installation Desktop / Wall Mount
Power Supply External Power Adapter, 53.5 V / 1.31 A
Maximum Power Consumption 75.7 W
Dimensions 171 × 98 × 27 mm
Operating Temperature 0°C to 40°C
Storage Temperature -40°C to 70°C
Operating Humidity 10%–90% RH, non-condensing
Storage Humidity 5%–95% RH, non-condensing
Certifications CE, RoHS
Package Contents MS110P Switch, Power Adapter, Quick Installation Guide
