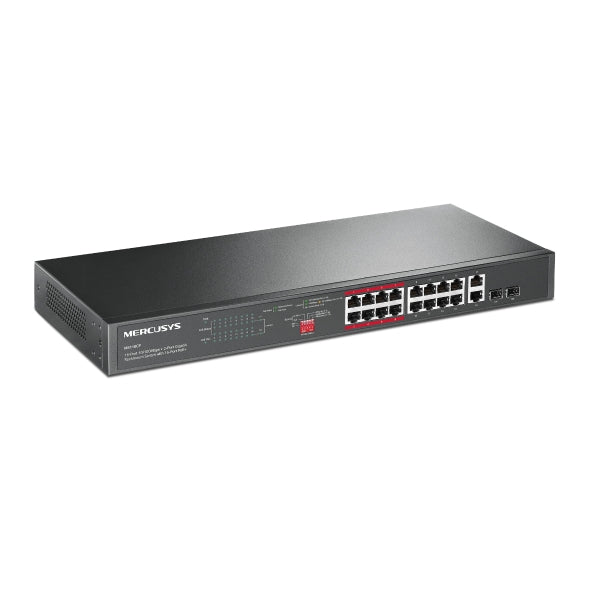

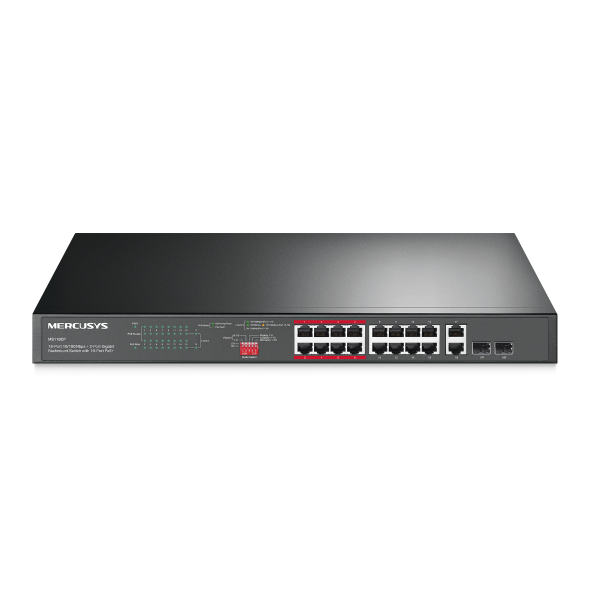

Mercusys MS118CP 16-Port 10/100Mbps + 2-Port Gigabit Rackmount Switch, Black

Mercusys MS118CP 16-Port 10/100Mbps + 2-Port Gigabit Rackmount Switch, Black

LE 3,999.00 EGP
LE 3,999.00 EGP
Sale Sold out
Shipping calculated at checkout.

MERCUSYS MS118CP – Key Features & Specifications

Feature Specification
Product Type 18-Port 10/100 Mbps + Gigabit Rackmount PoE+ Switch
Model MS118CP
PoE+ Ports 16 × 10/100 Mbps RJ45
Gigabit RJ45 Ports 2 × 10/100/1000 Mbps
SFP Slots 2 × Combo Gigabit SFP
PoE Standard IEEE 802.3af / IEEE 802.3at
PoE Power per Port Up to 30 W
Total PoE Budget 190 W
Long-Range PoE Up to 250 m with Extend Mode
Extend Mode Speed 10 Mbps
Priority Mode Ports 1–8
Isolation Mode Ports 1–16
PoE Auto Recovery Supported on Ports 1–16
Switching Capacity 7.2 Gbps
Packet Forwarding Rate 5.36 Mpps
MAC Address Table 8K
Jumbo Frame 10 KB
Switching Method Store-and-Forward
Flow Control IEEE 802.3x
Combo Port Function SFP port and associated Gigabit RJ45 port cannot be used simultaneously
Network Media 10BASE-T / 100BASE-TX / 1000BASE-T / 1000BASE-X
Rack Mounting Supported
Fans 2 × Fans
Physical Security Lock Supported
Management Unmanaged / Plug & Play
Power Supply 100–240 V AC, 50/60 Hz
Dimensions 440 × 180 × 44 mm
Operating Temperature 0°C to 50°C
Storage Temperature -40°C to 70°C
Operating Humidity 10%–90% RH, Non-Condensing
Storage Humidity 5%–90% RH, Non-Condensing
Certifications CE, FCC, RoHS
Package Contents MS118CP, Power Cable, Installation Guide, Mounting Brackets & Fittings
