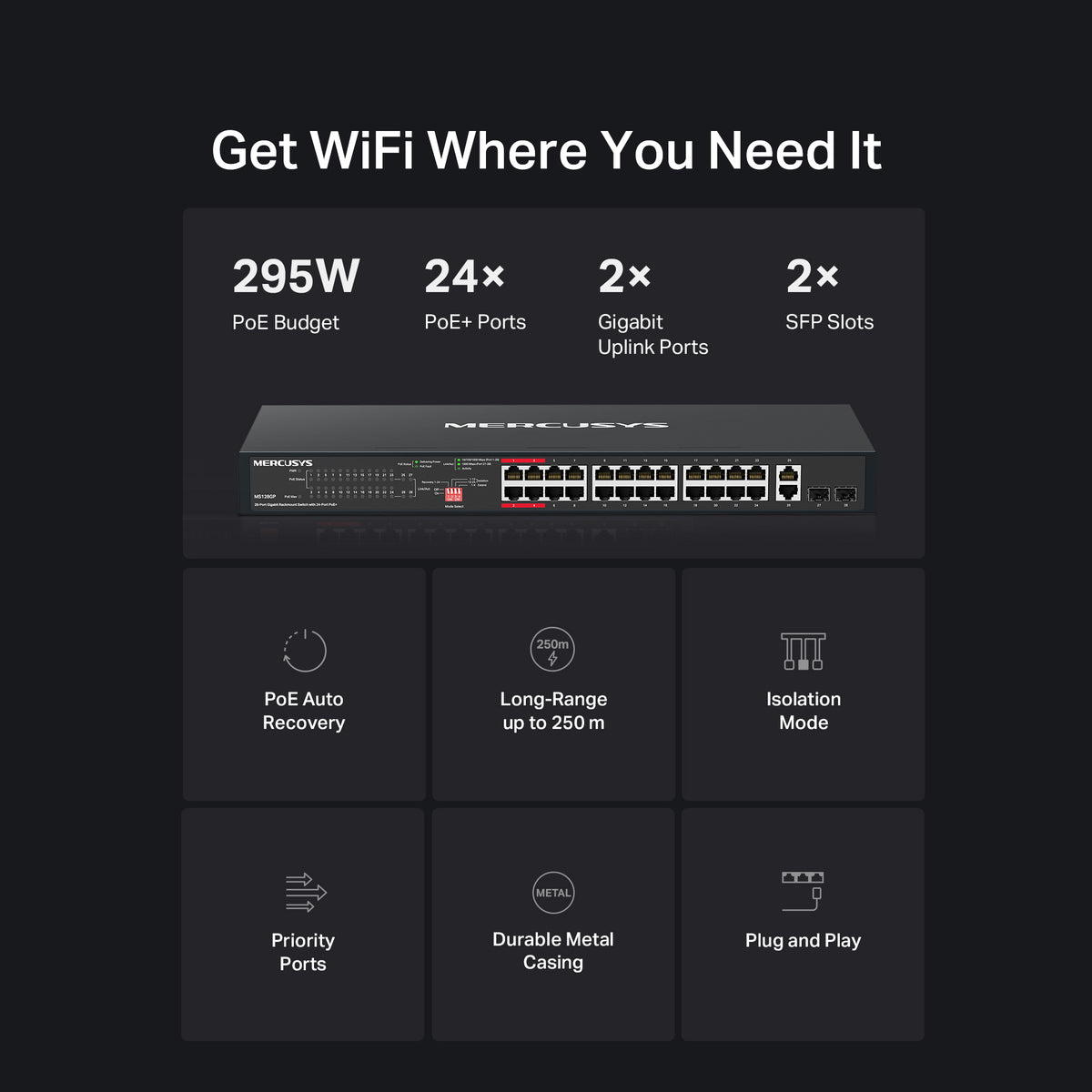

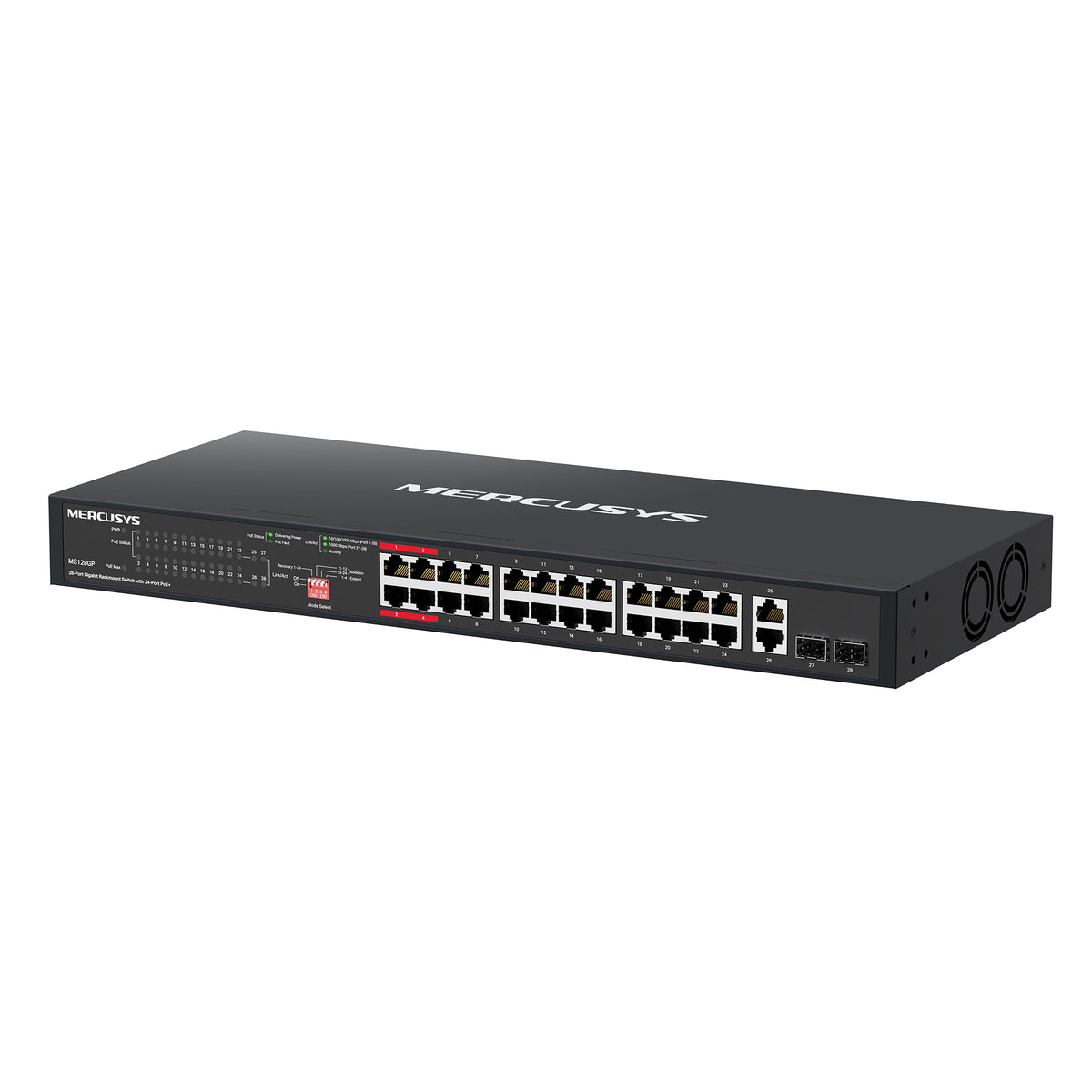

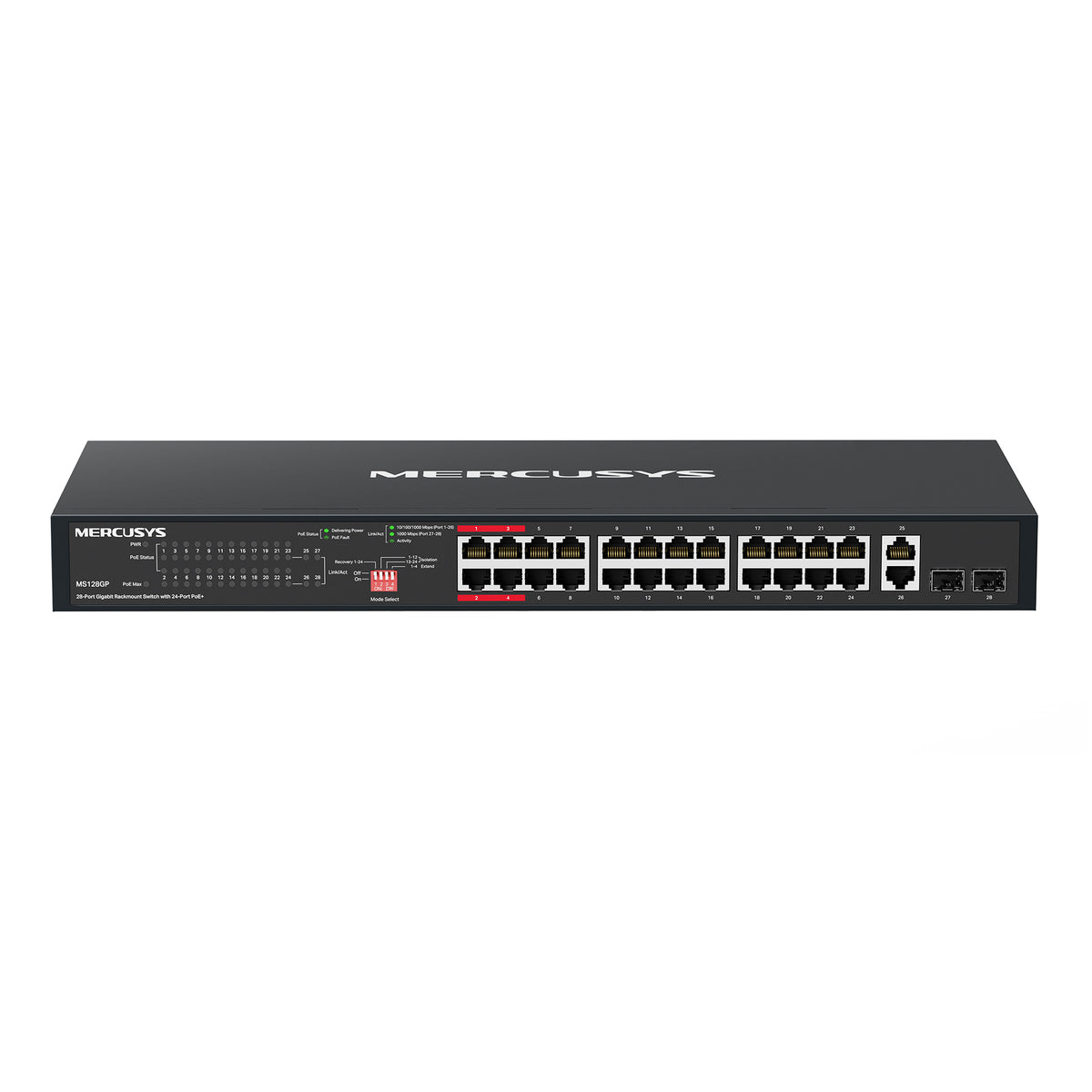

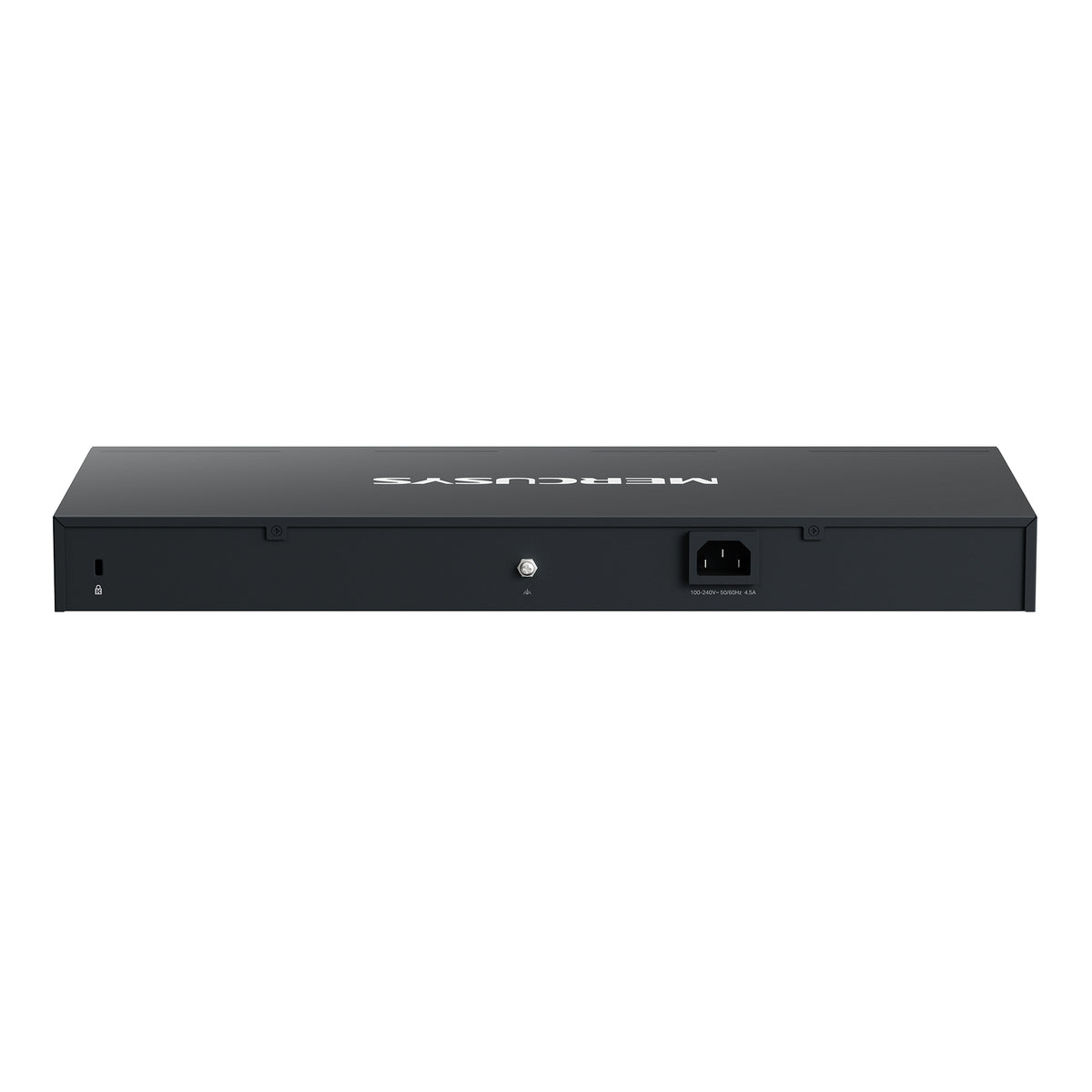

Mercusys MS128GP 28-Port Gigabit Rackmount Switch with 24-Port PoE+ (Max 295W), Long-Range Mode up to 250 m

Mercusys MS128GP 28-Port Gigabit Rackmount Switch with 24-Port PoE+ (Max 295W), Long-Range Mode up to 250 m

LE 7,999.00 EGP
LE 7,999.00 EGP
Sale Sold out
Shipping calculated at checkout.

MERCUSYS MS128GP – Key Features & Specifications

Feature Specification
Product Type 28-Port Gigabit Rackmount PoE+ Switch
Model MS128GP
Total Ports 28 × Gigabit Ports
PoE+ Ports 24 × 10/100/1000 Mbps RJ45 PoE+
Uplink Ports 2 × 10/100/1000 Mbps RJ45
SFP Slots 2 × Gigabit SFP
PoE Standard IEEE 802.3af / 802.3at
PoE Power per Port Up to 30 W
Total PoE Budget 295 W
Long-Range PoE Up to 250 m with Extend Mode*
Extend Mode Supported on 4 long-range PoE+ ports
Extend Mode Speed 10 Mbps on ports operating in Extend Mode
Priority Mode Ports 1–4
Isolation Mode Ports 1–12 and 13–24
PoE Auto Recovery Supported on Ports 1–24
Switching Capacity 56 Gbps
Switching Method Store and Forward
MAC Address Table 8K
Flow Control IEEE 802.3x
Auto-Negotiation Supported
Auto MDI/MDIX Supported
Standards IEEE 802.3i/u/ab/x/z/af/at
Transmission Media 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
Rack Mounting Supported
Casing Durable Metal Housing
Fans 2 × Fans
Physical Security Lock Supported
Management Unmanaged / Plug and Play
LED Indicators Power, Link/Act, PoE Status, PoE Max
Dimensions 440 × 180 × 44 mm
Operating Temperature -10°C to 45°C
Storage Temperature -40°C to 70°C
Operating Humidity 10%–90% RH, Non-Condensing
Storage Humidity 5%–90% RH, Non-Condensing
Power Consumption Up to 336.58 W at 220 V with 295 W PoE load
Certifications CE, RoHS
Package Contents MS128GP, Power Cord, Installation Guide, Mounting Brackets & Fittings
