| Product Type |

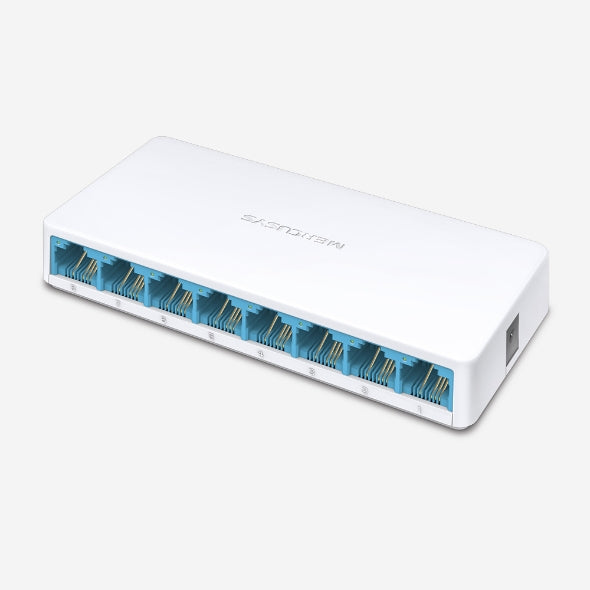

8-Port 10/100 Mbps Desktop Ethernet Switch |
| Model |
MS108 |
| Ethernet Ports |
8 × 10/100 Mbps RJ45 |
| Auto-Negotiation |
Supported |
| Auto MDI/MDIX |
Supported |
| Switching Capacity |
1.6 Gbps |
| Switching Method |
Store-and-Forward |
| MAC Address Learning |
Supported |
| Data Rates |
10/100 Mbps Half Duplex; 20/200 Mbps Full Duplex |
| Buffer Capacity |
768 Kb |
| Jumbo Frame |
2 KB |
| Standards |
IEEE 802.3 / 802.3u / 802.3x CSMA/CD |
| Flow Control |
IEEE 802.3x |
| Cooling |
Fanless / Silent Operation |
| Management |
Unmanaged / Plug & Play |
| Configuration |
No Configuration Required |
| Installation |
Desktop |
| Housing |
Compact Plastic Casing |
| LED Indicators |
Power / Ethernet Link |
| Power Supply |
External Power Adapter, 5 V / 0.6 A |
| Dimensions |
127 × 60.3 × 22 mm |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10%–90% RH, Non-Condensing |
| Certifications |
CE, RoHS |
| Package Contents |
MS108, Power Adapter, Quick Installation Guide |
