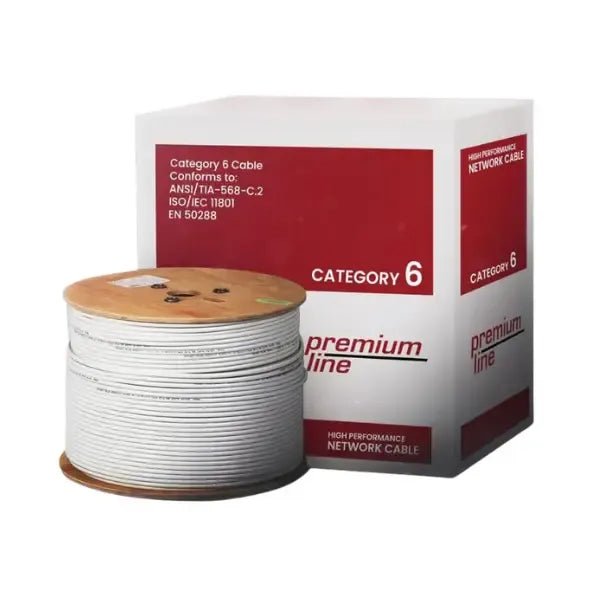

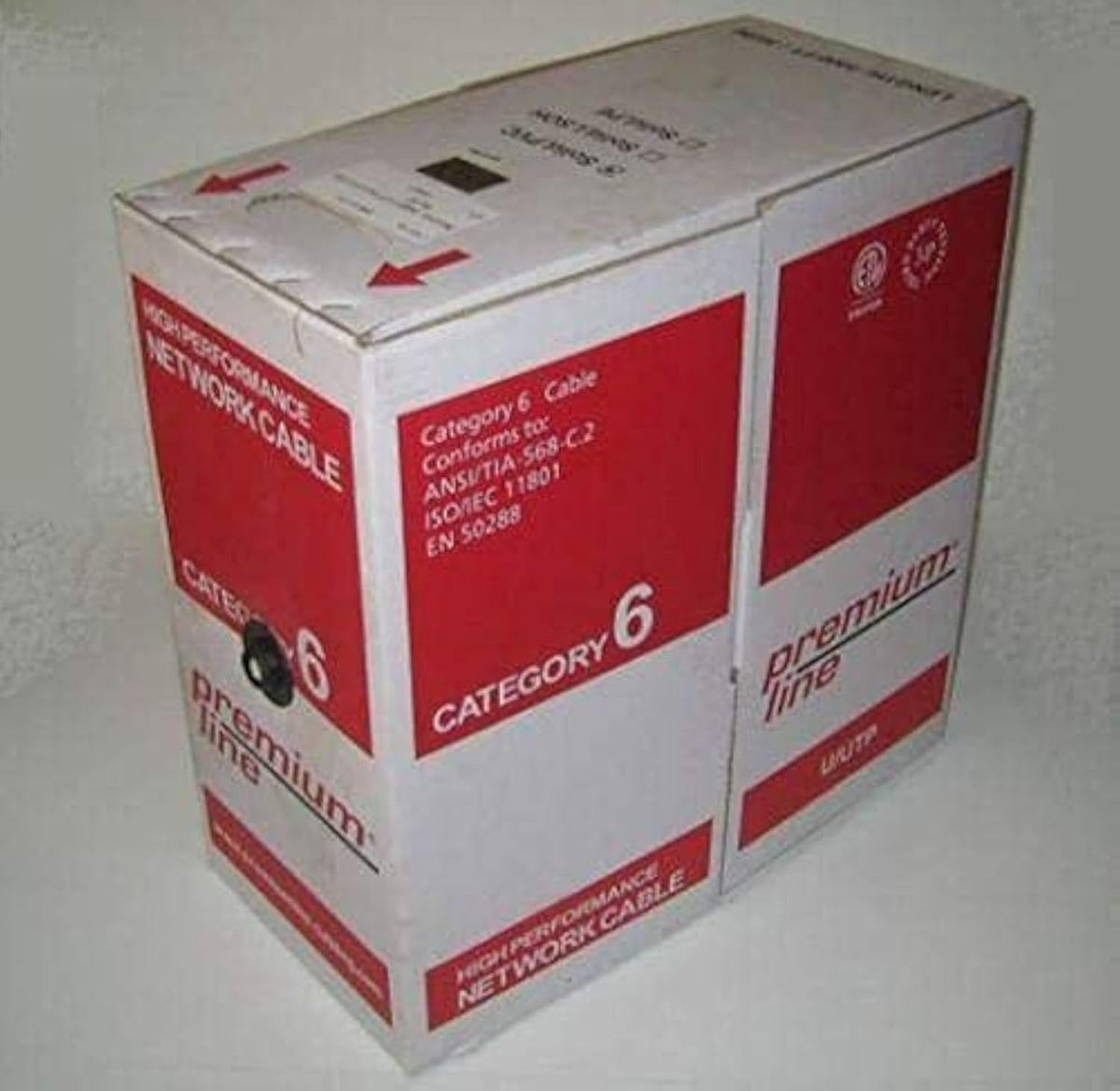

Premium Line CAT6 305M Network Cable
Premium Line CAT6 305M Network Cable
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Premium Line CAT6 305M Network Cable – Key Features & Specifications
| Feature | Specification |
|---|---|
| Product Type | Category 6 U/UTP Installation Cable |
| Brand | Premium-Line |
| Part Number | 206141115 |
| Category | Cat6 |
| Cable Type | U/UTP – Unshielded Twisted Pair |
| Length | 305 Meters / Box |
| Conductor | Solid Bare Copper |
| Conductor Size | 23 AWG |
| Number of Pairs | 4 Pairs / 8 Conductors |
| Insulation | HDPE |
| Cross Member | PE |
| Jacket | PVC |
| Color | Grey |
| Cable Diameter | 6.2 ± 0.3 mm |
| Bandwidth | Up to 350 MHz |
| Characteristic Impedance | 100 Ω |
| Ethernet Support | 10BASE-T / 100BASE-TX / 1000BASE-T / 1000BASE-TX |
| Standards | ANSI/TIA-568.2-D, ISO/IEC 11801-1 Class E, EN 50173-1, EN 50288-6-1 |
| Certifications | 3P Certified, ETL Certified |
| Flame Rating | IEC 60332-1-2 |
| Operating Temperature | -20°C to +60°C |
| Installation Temperature | 0°C to +50°C |
| Storage Temperature | -30°C to +60°C |
| Bending Radius | ≥ 6D without load / ≥ 8D with load |
| Application | Structured Cabling, Network Outlets, Patch Panels, Switches & Gigabit Ethernet |
