| Product Type |
Dual-Band Wireless MU-MIMO Wi-Fi Router |
| Wi-Fi Standard |
Wi-Fi 5 – IEEE 802.11ac/n/a (5 GHz), 802.11n/b/g (2.4 GHz) |
| Wi-Fi Class |
AC1900 |
| Total Wi-Fi Speed |
Up to 1,900 Mbps
|
| 5 GHz Speed |
Up to 1,300 Mbps
|
| 2.4 GHz Speed |
Up to 600 Mbps
|
| MIMO Technology |
3×3 MU-MIMO |
| Beamforming |
Supported |
| Smart Connect |
Automatically assigns devices to the optimal band |
| Antennas |
3× High-performance external antennas |

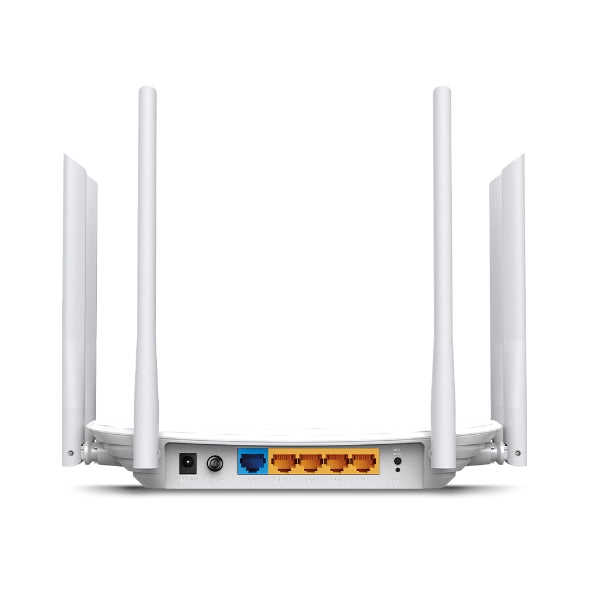

| Ethernet Ports |
1× Gigabit WAN + 4× Gigabit LAN |
| WAN Type |
Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Security |
WPA/WPA2 encryption, SPI Firewall, Access Control |
| Guest Network |
Separate 2.4 GHz and 5 GHz guest networks |
| QoS |
Device-based Quality of Service |
| IPv6 |
Supported |
| Management |
TP-Link Tether App / Web Interface |
| Operating Modes |
Router Mode / Access Point Mode |
| VPN |
VPN Pass-Through |
| USB Port |
Not available |
| Dimensions |
230 × 144 × 35 mm |
| Installation |
Easy setup through TP-Link Tether App |
| Package |
1× Archer C86, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide |
